30% air exhaust 70% air recirculation biological safety cabinet
A biosafety cabinet (BSC)—also called a biological safety cabinet or microbiological safety cabinet, which is an enclosed, ventilated laboratory workspace for safely working with materials contaminated with (or potentially contaminated with) pathogens requiring a defined biosafety level.
- ModelBSC-1000A2/BSC-1300A2/BSC-1600A2
- BrandLABOAO
- PortAny port in China
- PackagePlywood case package
DETAILS

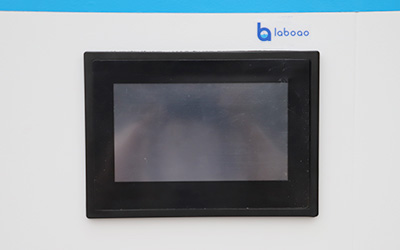

![30% air exhaust 70% air recirculation biological safety cabinet detail - LCD display panel, start up, run time, scheduled sterilization, fan failure, filter life can be displayed.]()
- LCD display panel, start up, run time, scheduled sterilization, fan failure, filter life can be displayed.

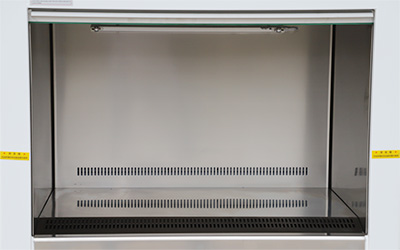

![30% air exhaust 70% air recirculation biological safety cabinet detail - The operating area is made of 304 stainless steel. The back side and the side are integrally formed without welding and without leakage.]()
- The operating area is made of 304 stainless steel. The back side and the side are integrally formed without welding and without leakage.

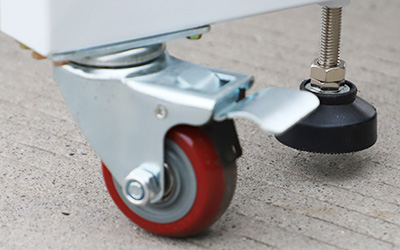

![30% air exhaust 70% air recirculation biological safety cabinet detail - Universal wheel and fixed caster, fixed machine does not run around.]()
- Universal wheel and fixed caster, fixed machine does not run around.

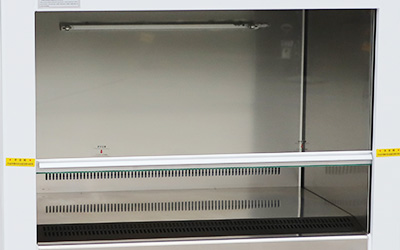

![30% air exhaust 70% air recirculation biological safety cabinet detail - Up and down movable glass window.]()
- Up and down movable glass window.

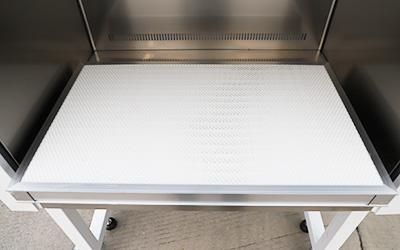

![30% air exhaust 70% air recirculation biological safety cabinet detail - HEPA High efficiency filter, Filtration efficiency of 99.999%]()
- HEPA High efficiency filter, Filtration efficiency of 99.999%

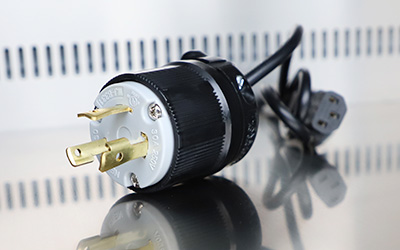

![30% air exhaust 70% air recirculation biological safety cabinet detail - Customizable plug, voltage]()
- Customizable plug, voltage
DESCRIPTION
The primary purpose of a BSC is to serve as a means to protect the laboratory worker and the surrounding environment from pathogens. All exhaust air is HEPA-filtered as it exits the biosafety cabinet, removing harmful bacteria and viruses.
FEATURES
1. Air curtain type isolation design prevents internal and external cross contamination. (negative pressure type)
2. Move the glass door up and down with a height limit alarm prompt for the operator to use correctly.
3. Using HEPA non-separator high efficiency filter, the filtration efficiency reaches 99.999%.
4. Adopt LCD panel control, fan fault alarm reminder, boot time prompt and continuous running time prompt, filter life display prompt.
5. With scheduled sterilization and sterilization timing function. (With UV protection device, the UV lamp is automatically turned off after the operation door is opened 2 cm)
6. The tilting design of the cabinet is ergonomic and increases the operating comfort.
7. The four sides of the operation area are made of 304 high-quality stainless steel. The back and sides are integrally formed on three sides without welding and no leakage.
SPECIFICATIONS
Model | BSC-1000A2 | BSC-1300A2 | BSC-1600A2 |
Overall size (W*D*H) | 1200*800*2100mm | 1500*800*2100mm | 1800*800*2100mm |
Purification area size (W*D*H) | 1000*700*580mm | 1300*700*580mm | 1600*700*580mm |
Purification efficiency | The 100 stage (America federal standard 209E) | ||
HEPA filter | HEPA/ULPA @ 0.3~0.12um 99.999%~99.9995% | ||
Airflow system | 70% air recirculation, 30% air exhaust | ||
Downdraft velocity | 0.31±0.025m/s | ||
Inflow velocity | 0.48±0.025m/s | ||
Power | ≤1.5KW | ||
Average colony account | ≤0.5A/dish/hour | ||
Noise | ≤65dB(A) | ||
Vibration half peak | ≤3μm (X.Y.Z) | ||
Power supply | 220V 50Hz | ||
Filter size (L*W*H) | 980*520*50mm | 1280*520*50mm | 1580*520*50mm |
Fluorescent Lamp | 21W*2 | 28W*2 | 28W*2 |
UV lamp | 21W*1 | 21W*1 | 14W*2 |
Wind direction | Top ∅200mm | ||
Illumination | ≥700LX | ||
Weight | 160kg | 220kg | 280kg |
