50L 100L Glass Liquid Separator

According to the actual needs of the majority of biopharmaceutical development companies, the glass dispenser is an improved derivative product developed on the basis of the existing single-layer glass reactor. It is mainly used for liquid-liquid extraction and can also be used for reactions at room temperature.

ModelLFY-50/LFY-100
BrandLABOAO
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

6 Advantages Of LABOAO Glass Liquid Separator

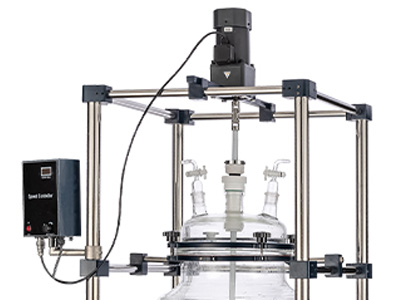

: 1. Frame type main body, made of aluminum alloy + stainless steel material

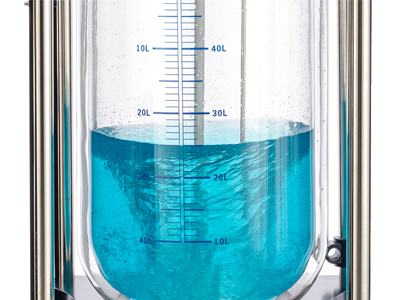

: 2. The contact part of the material is made of high borosilicate glass, stable performance

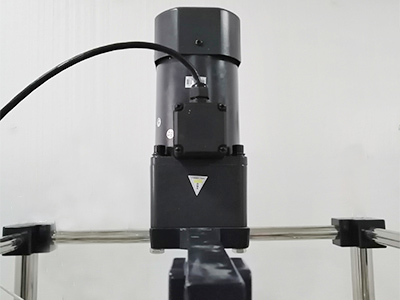

: 3. All copper brushless motor, pure copper motor coil, low speed and high torque, stepless speed regulation, low noise and long life

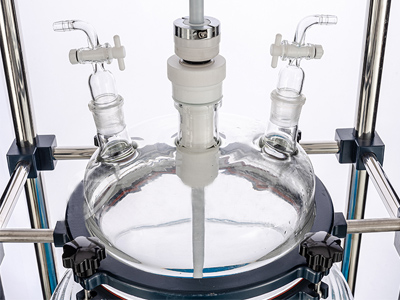

: 4. The stirring system adopts ceramic bearings and mechanical seals to prevent the stirring rod from being worn and chipped, high temperature resistance, abrasion resistance, and good sealing effect.

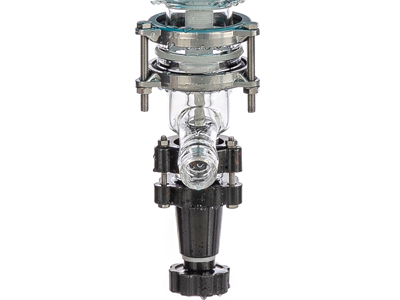

: 5. Glass discharge valve, recovery solution is very fast

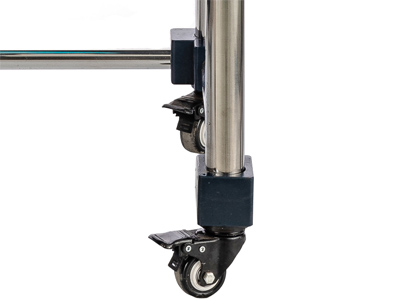

: 6. There is a universal wheel with brake at the bottom of the machine, which can move as a whole

DESCRIPTION

FEATURES

1. The frame-type main body is made of aluminum alloy + stainless steel.

2. The whole set of glass is made of GG17 high borosilicate glass + PTFE discharge valve, discharge side without liquid.

3. Low-speed power-increasing motor, electronic stepless speed regulation, fine-tuning by twisting, digital display of speed, safe and stable, and can work continuously.

4. The stirring system adopts ceramic bearings and mechanical seals to prevent the stirring rod from being worn and chipped.

5. Crescent type stirring blade, 304 stainless steel + PTFE stirring blade; the stirring rod is made of 304 stainless steel, wrapped with PTFE tube.

6. There is a universal wheel with brake at the bottom of the machine, which can be moved as a whole and is easy to operate.

7. Fuse safety protection.

SPECIFICATIONS

Model	LFY-50L	LFY-100L
Capacity	50L cylinder type φ365mm inner length 576mm	100L cylinder type φ465mm inner length 696mm
Voltage frequency	220V/50Hz	220V/50Hz
Motor Power	120W 1/3	200W 1/3
Rotating speed	0-450rpm/min
Kettle body	φ470mm four ports	φ340mm four ports
Stirring port	φ80mm flange mouth
Feeding port	34# standard port
Decompression port	34# standard port
Lower discharge port	φ80mm flange mouth
Mixer	φ17*900H(mm) Leaf spread 190mm	φ17*1200H(mm) Leaf spread 240mm
Feeding valve	34# standard plug valve feeding nozzle (pagoda joint) outer diameter 12mm
Pressure reducing valve	34# standard plug valve vent nozzle (pagoda joint) outer diameter 12mm
Discharge port	φ80mm flange φ33mm discharge hole Oblique discharge port (pagoda joint) φ34mm 350mm from the ground
The whole machine occupies space size	7206001800mm	7508002100mm
Machine net weight	51KG	67KG
Package Size	1680620650mm wooden box 0.68m³	1920720760mm wooden box 1.06m³
Package weight	82KG	115KG
