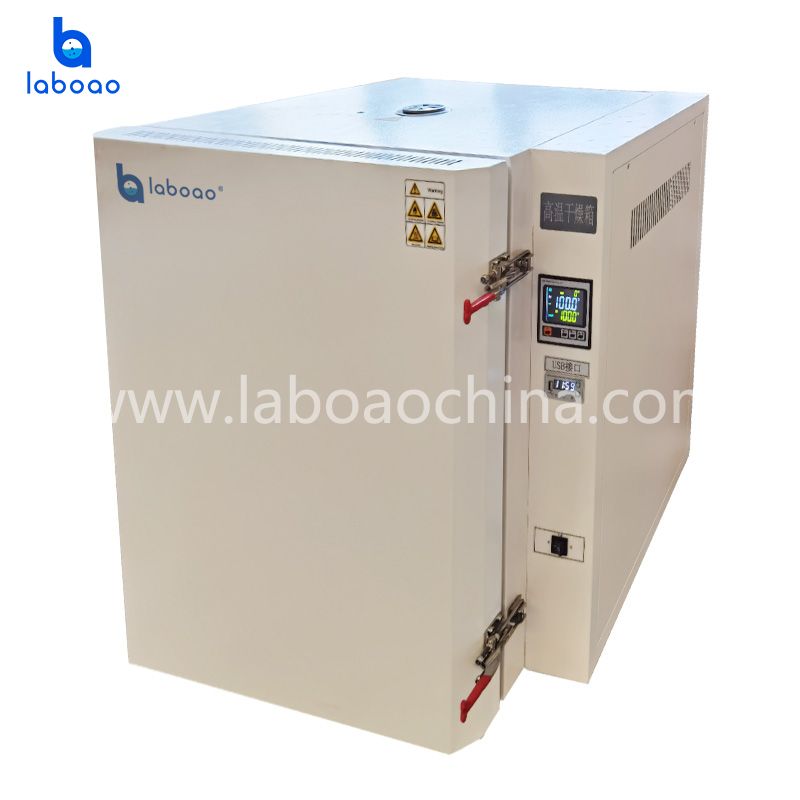

400°C High Temperature Drying Oven

High temperature drying oven, also known as high temperature drying oven, high temperature electric heating blast drying oven, is used for drying, baking, sintering, curing, heat treatment, heat preservation and high temperature tests in industrial and mining enterprises, medical institutions, scientific research units, colleges and universities, etc.

Model LTWG Series
BrandLABOAO
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION

The drying box shell is made of high-quality steel plate with 304 hairline brushed stainless steel inside. It has good thermal insulation performance. A blower is installed on the top surface of the box chamber, which is equipped with an air duct in the box, so that the hot air in the box can be circulated regularly, thereby improving the temperature uniformity in the box.

After the upper exhaust pipe of the box chamber is opened, the exhaust gas in the box can be discharged to the outside of the box. The operating system of this machine is set in the electrical box on the left side of the box, and the temperature setting and temperature control in the box are completed by the intelligent microcomputer integrated temperature control system.

FEATURES

1.Can carry out high temperature heat resistance test and heat treatment of 400<C/500<C/600°C and below.

2.Intelligent microcomputer integrated temperature control system, PID logic operation function.

3.Color LCD screen with digital display, with set temperature, constant temperature, timing, self-tuning, over-temperature alarm

and other functions.

4.It has the function of recovering incoming calls, and also has the function of self-diagnosis of sensors and over-temperature alarm.

5.The inner tank is made of 304 stainless steel, with arc angle design, easy to clean.

6.The heating element adopts 304 stainless steel heating tube.

7.Inverted door lock, automatically locks when the door is closed, easy to open and good sealing.

8.Four casters are provided, which is convenient for moving the product, and there is a lock switch.

SPECIFICATIONS

Model	LTWG-4032L	LTWG-4050L	LTWG-4080L	LTWG-4136L	LTWG-4225L
Mode	Forced hot air circulation
Operating temperature range	RT+10-400°C
long-term use temperature	Maximum temperature 400°C
long-term use temperature	380°C
Constant temperature fluctuation	≤±2°C
temperature resolution	0.1°C
Temperature distribution accuracy	±2.5%
Heating rate	≥5°C/min
Interior	304 hairline brushed stainless steel
Exterior	Cold-rolled steel sheet with chemical-resistant coating on the surface
Thermal insulation material	Aluminum silicate fiber male
Heating pipe	Dust-proof stainless steel heating tube
Heating pipe	1.8KW	2.0KW	2.0KW	2.5KW	3.0KW
Vent	Top inner diameter 40mm
Sensor	Type K
Timing range	1-9999min
Operation mode	Fixed value operation, timing operation
Inner dimension(mm)	300300350	350350400	400400450	450550550	500600750
Dimensions	670510750	720560800	770610850	820760950	8708101150
Outer packing size (mm)	770630880	820670940	870720980	9208701080	9709101280
Volume	32L	50L	80L	136L	225L
Tray carrier	2 partitions
Partition load-bearing	10KG
Partition load-bearing	220V 9A	220V 10A	220V 10A	220V 12A	220V 14A
Accessories	485 interface
Optional	Program controller (30 segments), independent temperature limit controller, sound and light alarm, timer, printing system, inert gas filling valve, emotional gas control system, mobile phone SMS alarm

APPLICATION

Research and Development
Biotechnology Pharmaceutical
Food and Beverage Processing
Industrial Applications
Environmental Testing
Textile and Apparel Industry

WHY CHOOSE US

Factory direct sales with competitive price.
Premium quality with CE & ISO certification.
Strong product OEM & ODM customization capability.
Promise production & on-time delivery.
Perfect after-sales service, free product accessories.
15 years of experience in R&D and production of high temperature drying oven machine.

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

AFTER-SALE WARRANTY

Authenticity GuaranteedWe assure you purchase our products are 100% certified products.

24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.

Technical SupportProvide equipment installation, adjustment, operation training, etc.

1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
