Off-site Sterilization Triple Quintuple Conjoined Glass Bioreactor

The in-situ sterilization four conjoined glass bioreactor suitable for microbial culture with viscous media and solids, complete sterilization. It is a powerful tool for the selection of medium formula and process optimization.
  • ModelLBR-XGC/LBR-XGJ Series
  • BrandLABOAO
  • CustomizedOEM/ODM
  • CertificationCE/PED
  • Min. Order1 unit
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

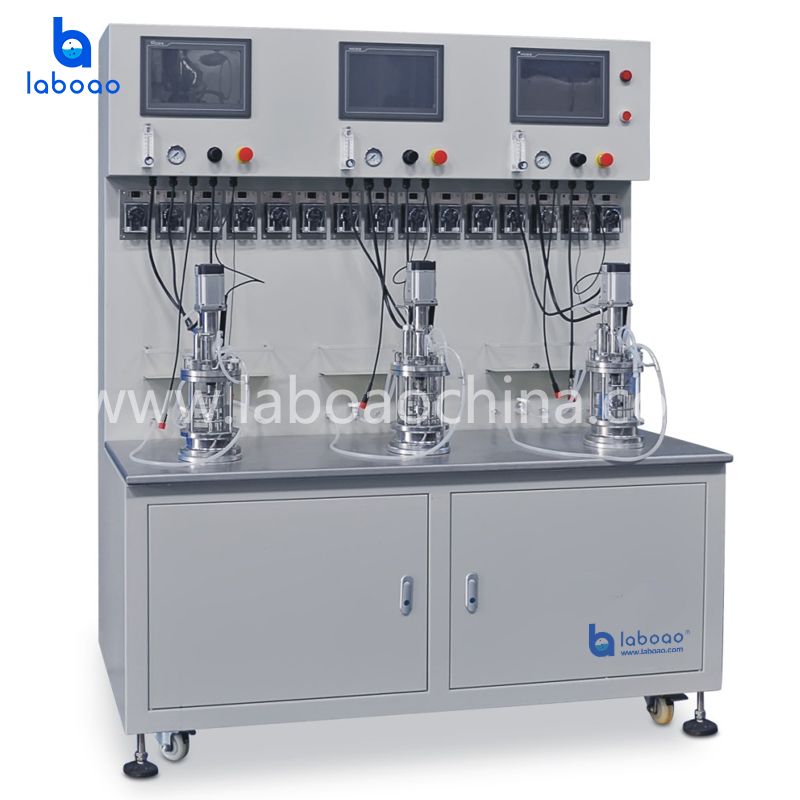

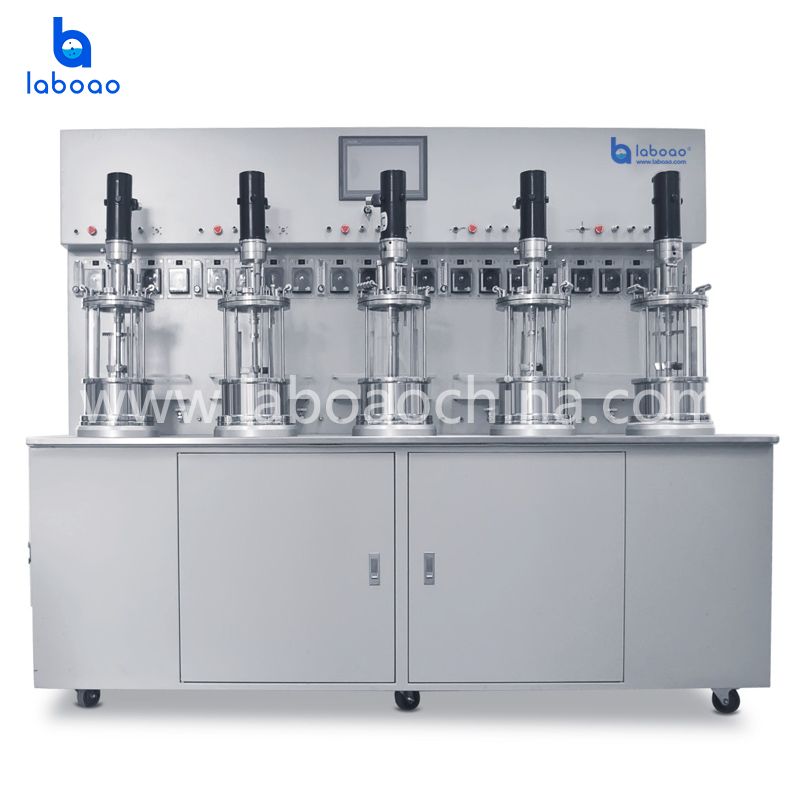

Triple quintuple conjoined glass bioreactor is a set of laboratory glass fermentation equipment, easy to operate, powerful, and can meet various purposes of fermentation, such as batch, batch feeding, and even animal cell culture. The color touch screen is used to display all measured values and control parameters, which greatly facilitates the user's operation. Each tank is equipped with 4 peristaltic pumps beside the front tank, which can supply acid, alkali, defoamer and culture medium to the fermentation tank. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer. The structure is compact, and various components can be integrated into the fermentation system. It adopts the direct coupling mechanical stirring method driven by the upper part or the magnetic indirect coupling mechanical stirring method driven by the lower part, which has a simple structure and stable operation.


Application areas:

• Discover secondary metabolites or new enzyme activities in heterogeneous mixed culture products;

• High-throughput screening research, mutant strain distribution research and construction of E. coli library or yeast library;

• Metabolic flux research and high-throughput screening of highly active mutant strains;

• Comparative studies, such as: isolation and screening of clinical strains;

• Optimization of growth medium for cell lines or high-yield strains;


FEATURES

1. German Siemens PLC control system +10" touch screen display and operation, full Chinese menu and interface

2. Data analysis, saving, curve display can be carried out, data can be saved for many years, data can be exported with USB flash drive, tank data can be sampled and displayed, system data can be browsed and analyzed, and settings can be read.

3. The inner parts of the tank are all installed on the tank lid, which is very convenient for maintenance and cleaning; the stepless speed regulation range with automatic setting control is 50-1200rpm±5rpm

4. Rotameter display, adjust gas flow according to process requirements

5. Each tank is equipped with 4 peristaltic pumps beside the front tank, which can supply acid, alkali, defoamer and culture medium to the fermentation tank.

6. Various parameters in fermentation such as pH, DO, temperature and speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer.

7. The structure is compact, and various components can be integrated into the fermentation system.

8. It adopts the direct coupling mechanical stirring method driven by the upper part or the magnetic indirect coupling mechanical stirring method driven by the lower part, which has a simple structure and stable operation.

SPECIFICATIONS

Model

LBR-XGC-3-H

LBR-XGJ-3-H

LBR-XGC-5-H

LBR-XGJ-5-H

All   Capacity

1L/2L/3L/5L/7L/10L/15L

Material

316L   stainless steel+ borosilicate glass

Mixing   method

magnetic   stirring

mechanical   stirring

magnetic   stirring

mechanical   stirring

Sterilization   method

off-site   sterilization

Basic   Configuration

Temperature,   Speed, PH, DO, Defoaming, Ventilation, Pressure

Extensible   configuration (optional)

Exhaust   O2, CO2 detection, online detection of methanol and ethanol content, refill   weighing system etc.

Power

220V   4KW

220V   5KW

Dimension(L*W*H)

1200*730*1650mm

2000*730*1650mm

Net   Weight

100kg

200kg

WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of glass bioreactor fermenter machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
