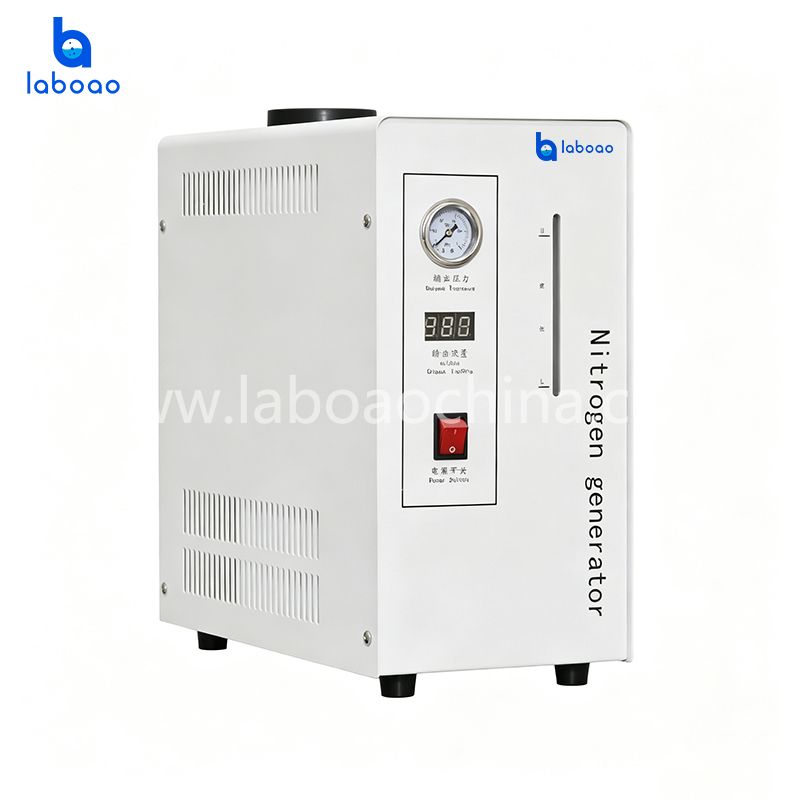

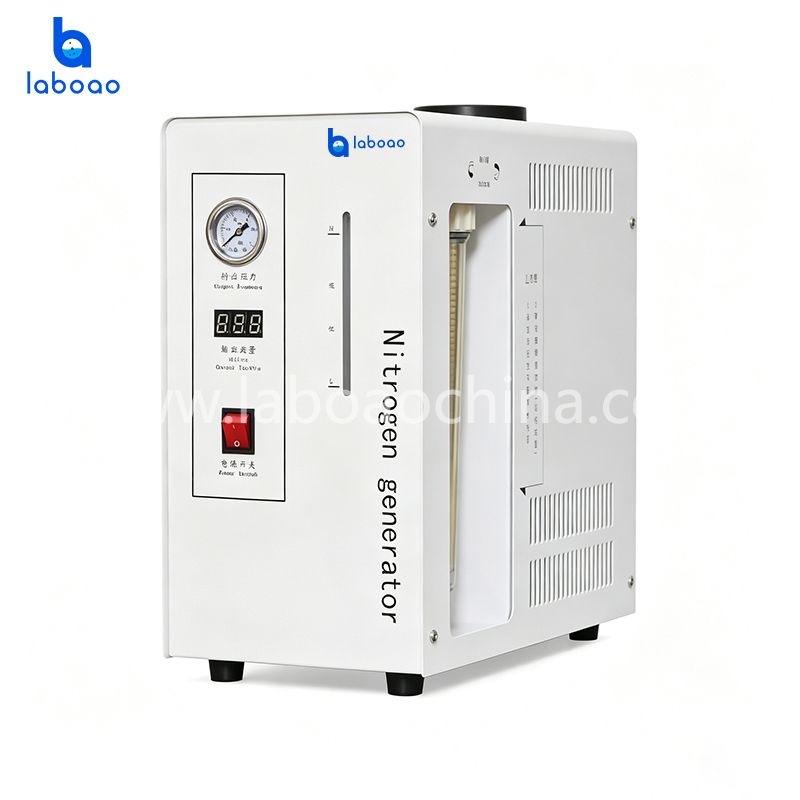

The nitrogen generator is a device developed by our Gas Supply Department to provide purge gas and carrier gas for instruments such as gas chromatographs, Fourier transform infrared (FT-IR) spectrometers, total organic carbon (TOC) analyzers, and thermal analyzers.
1.Serves as an alternative to high-pressure gas cylinders; features a dual-cathode stainless steel electrolytic cell for nitrogen generation—simply switch on to produce gas quickly and conveniently.
2.Low maintenance costs; requires only the addition of pure water for continuous operation under normal use.

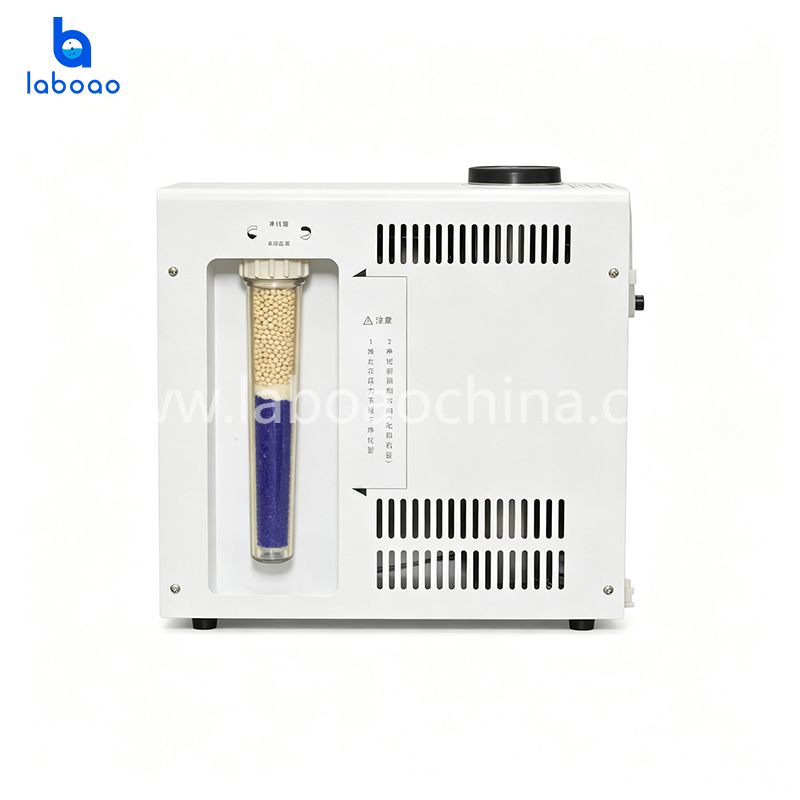

3.Unique anti-backflow mechanism prevents liquid backflow; three-stage purification ensures superior gas purity.
4.Large-capacity water reservoir allows for several days of continuous, uninterrupted operation on a single fill.
5.Purification tubes manufactured via a seamless deep-drawing process minimize potential leak points, maximizing the instrument's reliability.
Model | LNG-300 | LNG-500 |
Output flow rate | 0–300 mL/min | 0–500 mL/min |
Output pressure | 0–0.4 MPa | 0–0.4 MPa |
Pressure stability | <0.2% | <0.2% |
Nitrogen purity | >99.999% | >99.999% |
Liquid tank capacity, water quality requirements | Nitrogen (1200 mL) distilled or deionized water | Nitrogen (1200 mL) distilled or deionized water |
Power supply | 220 V ±10%, 50–60 Hz | 220V ±10%, 50–60 Hz |
Operating ambient temperature | 0–40°C | 0–40°C |
Operating ambient humidity | <85% | <85% |
