0.09㎡ top press lab freeze dryer 0.09㎡ top press lab freeze dryer 0.09㎡ top press lab freeze dryer 0.09㎡ top press lab freeze dryer 0.09㎡ top press lab freeze dryer 0.09㎡ top press lab freeze dryer

0.09㎡ top press lab freeze dryer

8% OFF Discount ends in

Give a $100 coupon(only for the next order, valid for one year)

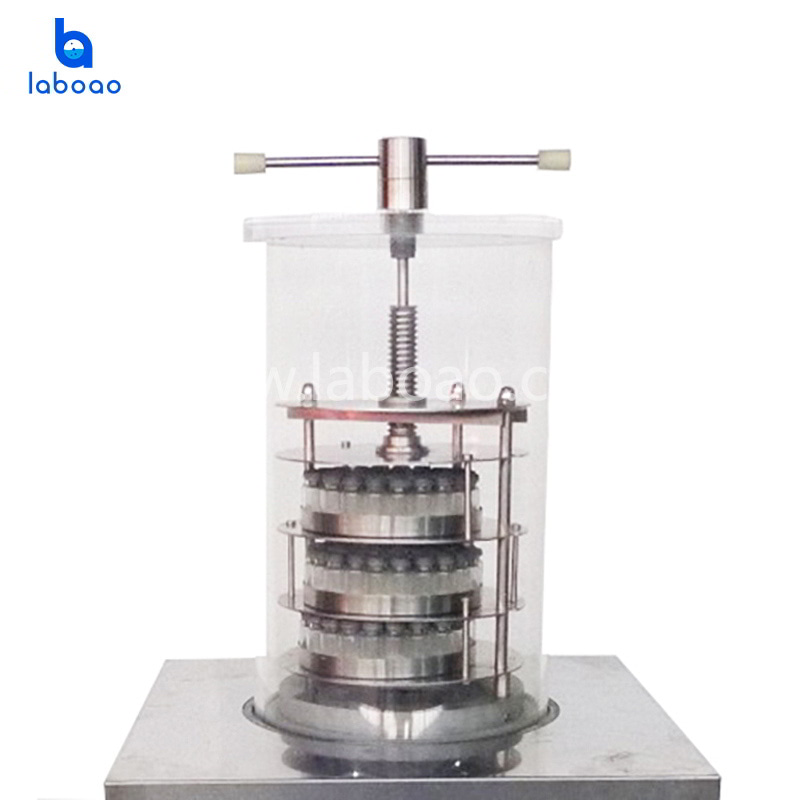

LFD-18-2 is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial's lid unsealed. The capping device compacts the vials' lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.
  • BrandLABOAO
  • ModelLFD-18B
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DESCRIPTION

This freeze dryer  is widely used in medicine, pharmacy, biology research, chemical industry and food production,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.This model is suitable for experiment in laboratory and small amount production ,and it can meet the regular freeze dying requirements of the most laboratories.

FEATURES

1. all-in-one structure , small size, no external flange, easy to use, no leakage.

2. All materials in contact with the product use inert materials to meet the requirements of the GLP.

3. The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.

4. All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.

5. with sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.

6. Patented gas diversion technology, and strong ice holding ability.

7. world- known  brand compressors, high efficiency, long life, low noise.

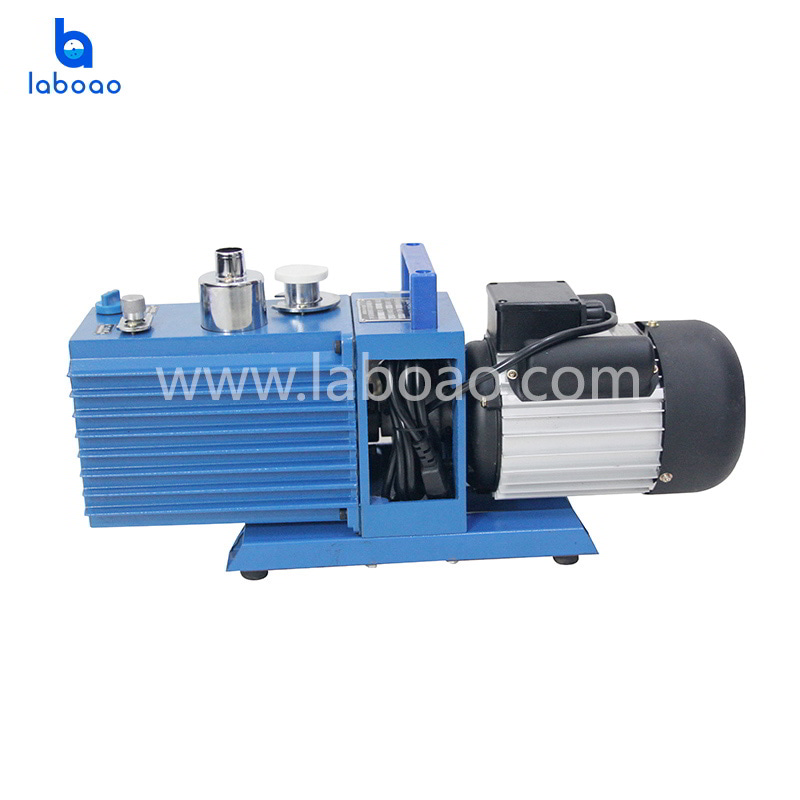

8. Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.

9. Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.

10. Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.

11. Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

SPECIFICATIONS

Model

LFD-18B

freeze drying   area

0.09

tray dia.

Ф200mm

tray numbers

3

tray spacing

70mm

cold trap temp.

≤-60optional ≤-80

cold trap depth

400mm

cold trap dia.

Ф270mm

ice collecting   capacity

6kg/24h

pump speed

4L/S

ultimate vacuum

≤5pa

power

1400w

main unit weight

105kg

main unit   dimensions

630×580×970mm

-80main unit dimensions

810×580×950mm

drying chamber   dimensions

Ф300×540mm

cooling mode

by wind

defrosting mode

by air

shipping weight

0.9Lthickness 10mm

loadable vials   q'ty

Ф12mm 615pcs

Ф16mm 345pcs

Ф22mm 183pcs
