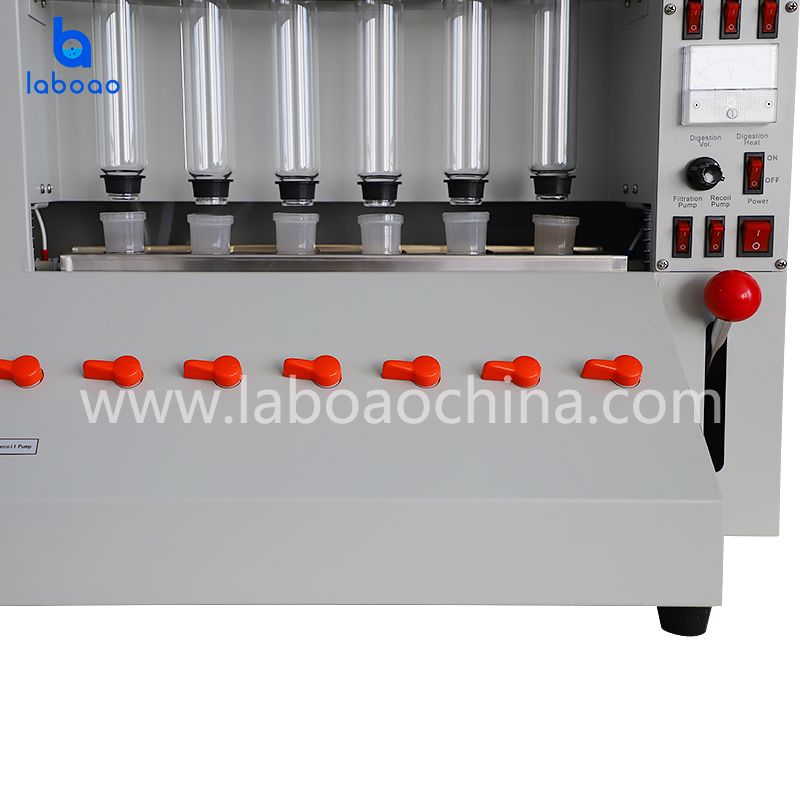

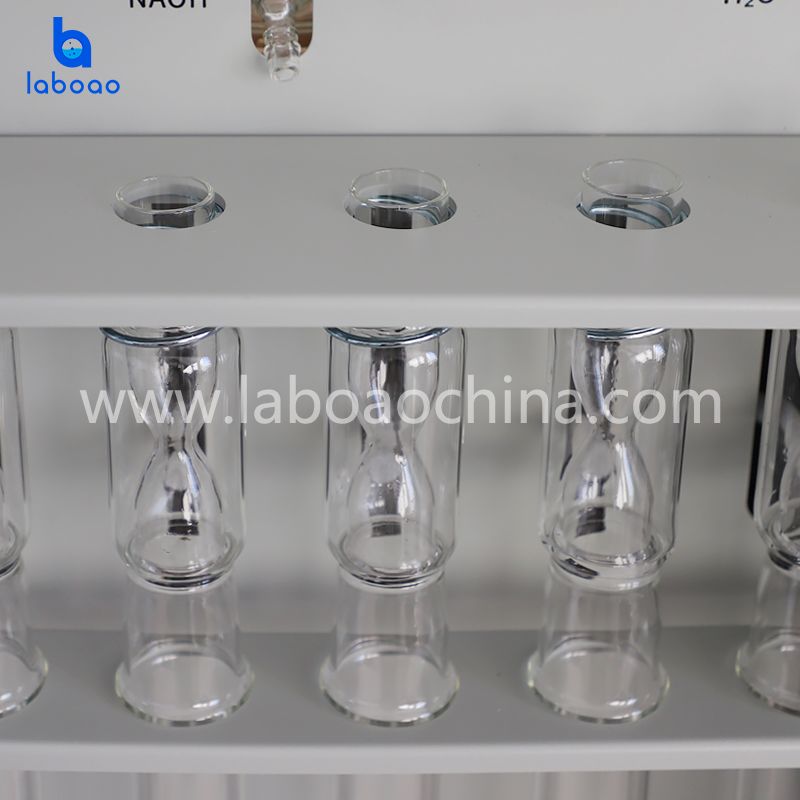

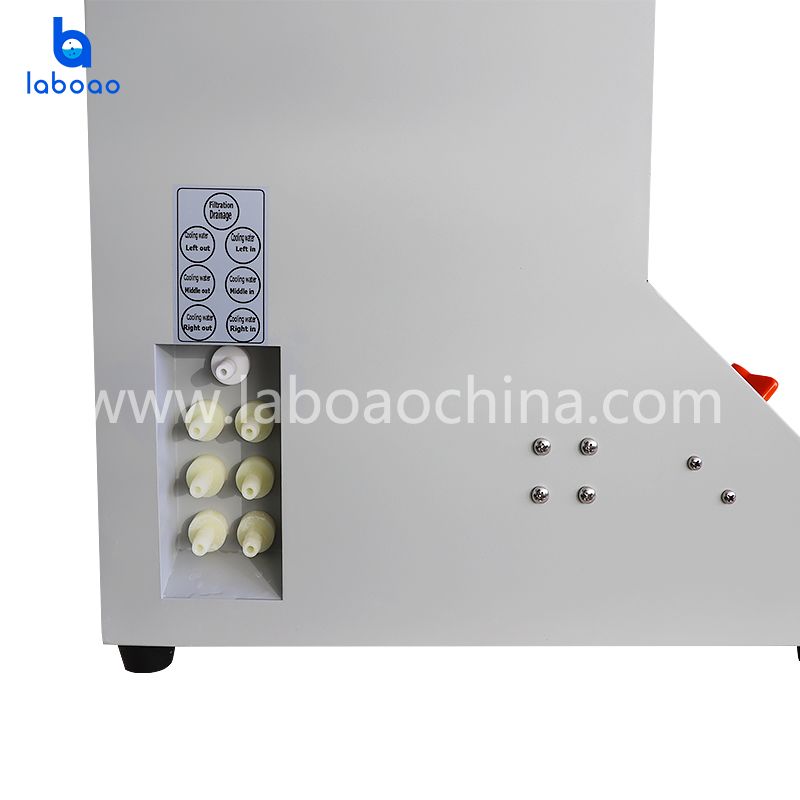

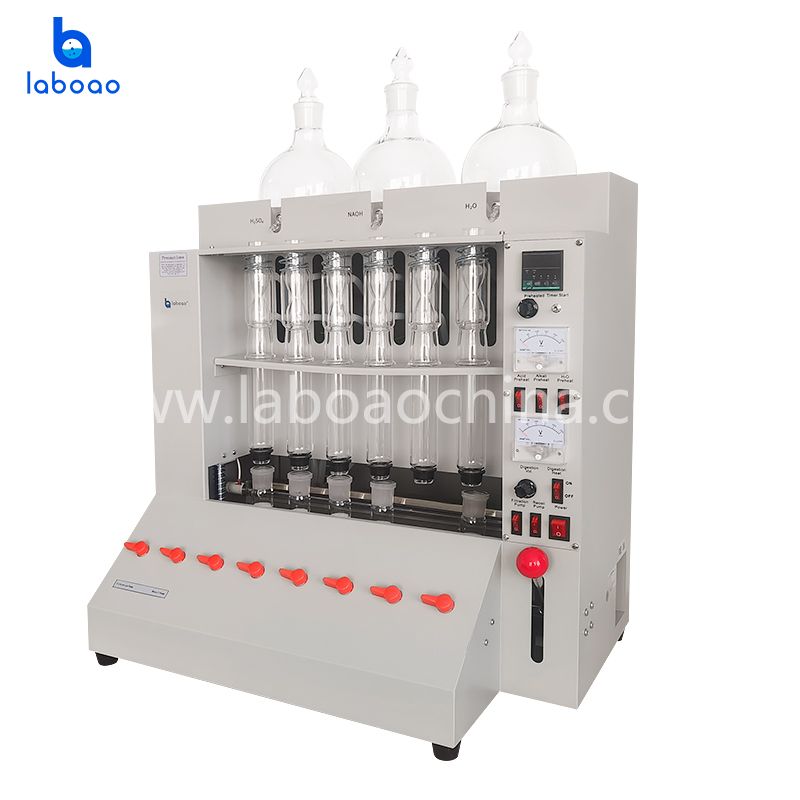

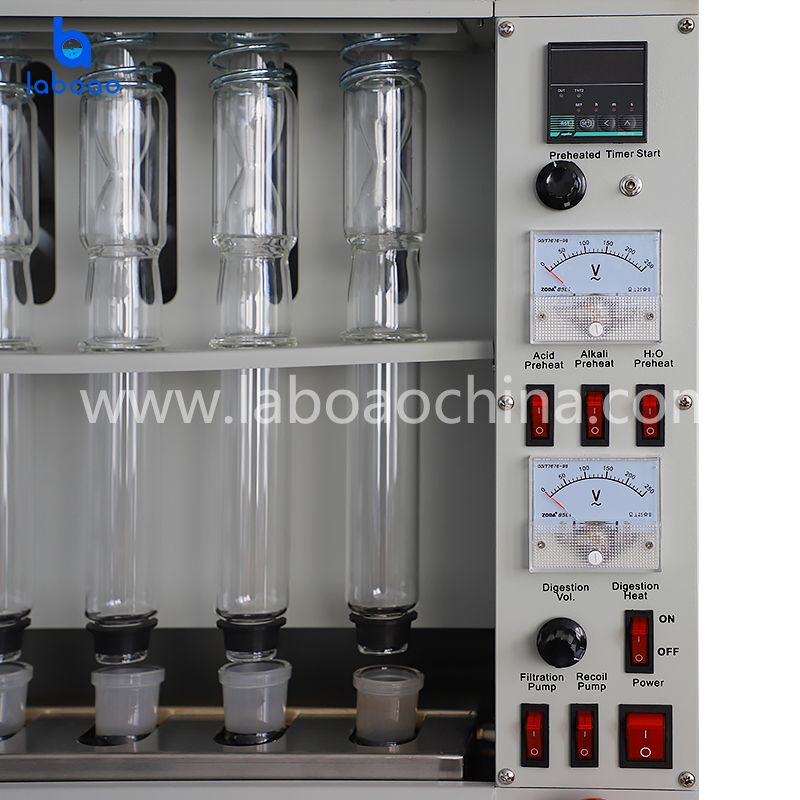

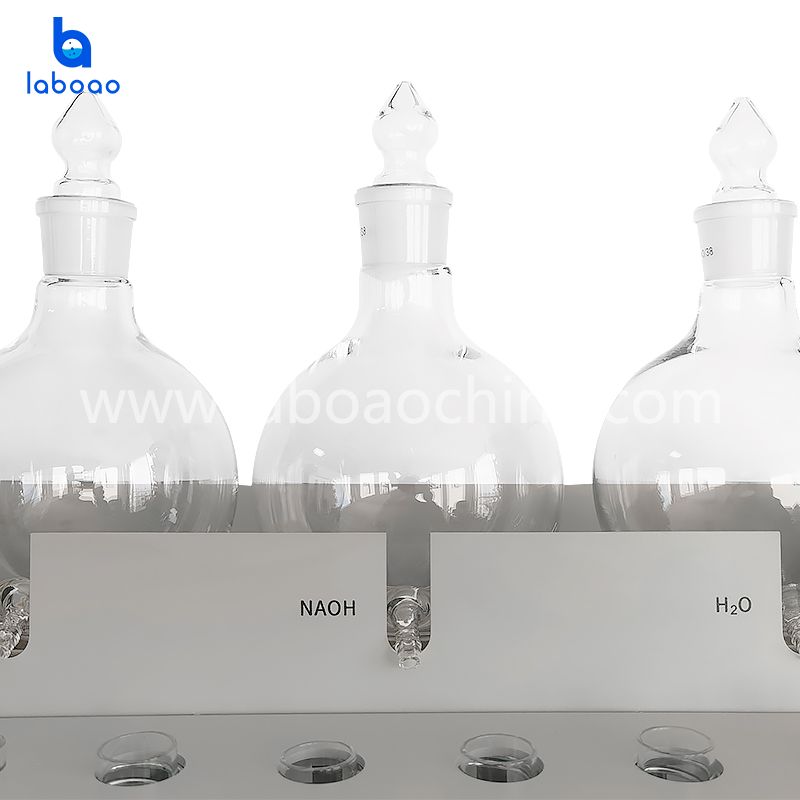

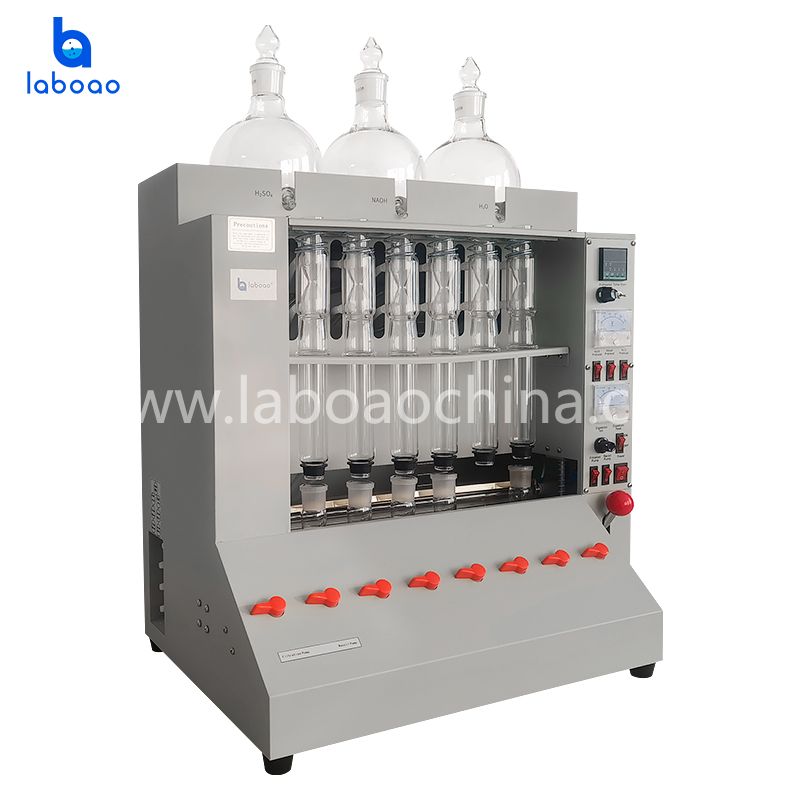

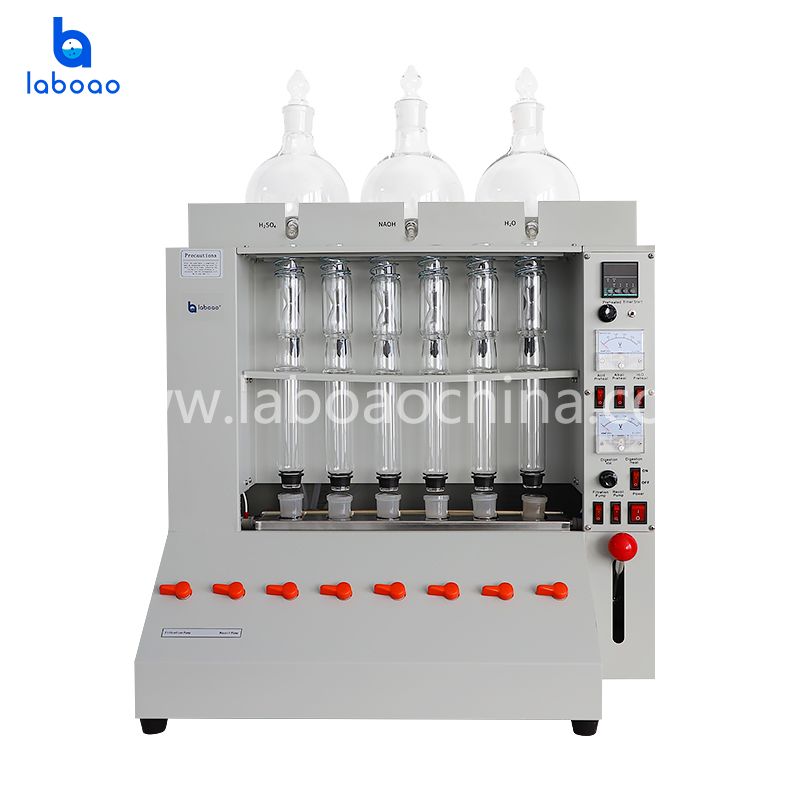

Crude Raw Fiber Analyzer
LFA-06 Raw Fiber Analyzer assimilates samples based on the common acid & alkali assimilation method, and gets raw fiber content by weight determination which is suitable for testing raw fiber content of all kinds of feed, foodstuff, grain, food and so on.
- ModelLFA-06
- BrandLABOAO
- PortAny port in China
- PackagePlywood case package
DESCRIPTION
The instrument adopts acid and alkali of accurate concentration and assimilates under certain conditions. After removing the soluble substance by alcohol and burning the rest solution at high temperature, the residue minus the mineral is called raw fiber. However, it’s not an actual chemical substantiality, while it is only a measured compendium ingredient under legal compelled regulation. Fiber is its main content, while a little fiber and xylogen are also contained.
SPECIFICATIONS
Measuring object | Raw fiber content in various kinds of grain, food, feed and other agricultural and sideline products |
Measuring sample quantity | 6pcs / time |
Repeatability error | raw fiber level < 10%, absolute value error ≤0.4% |
raw fiber level >10%, absolute value error ≤ 4% | |
Measuring time | about 100min (including acid 40min, alkali 40min, filter and wash 20min) |
Power | AC220V/50Hz,2800W |
Water supply | water pressure >1.5Mpa |
water temperature <20℃ | |
Dimension | 670x450x670mm |
Weight | 35kg |
