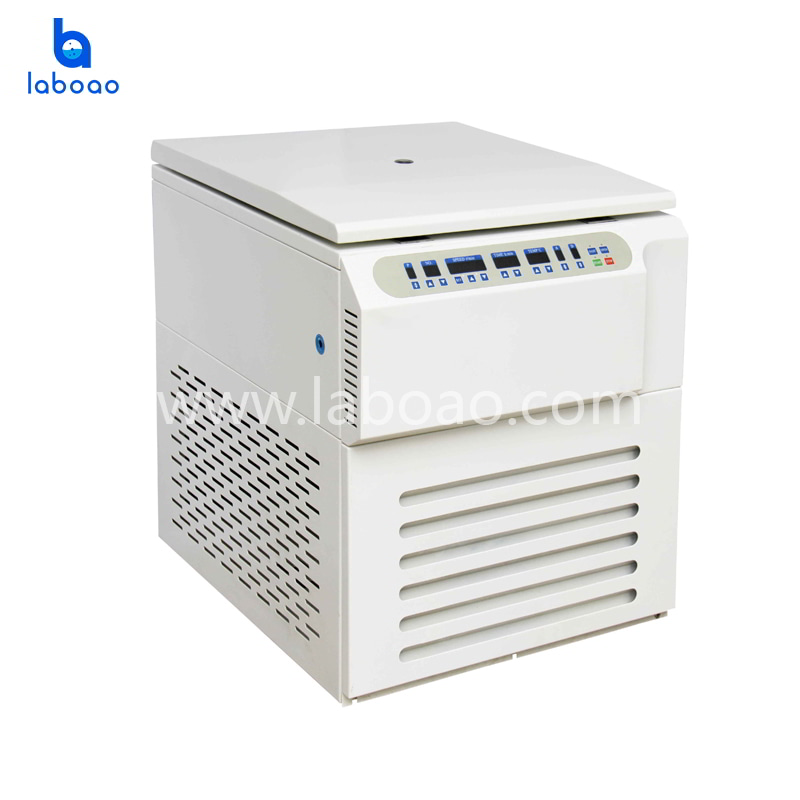

The ultra-large capacity refrigerated centrifuge is suitable for production stations of blood stations, pharmaceutical plants, biochemistry, biological products, etc. With a capacity of 14.4 liters, it is an ideal instrument for large-scale blood separation, protein precipitation and cell separation and collection.
1. It adopts brushless high torque variable frequency motor, which is maintenance-free, free of dust pollution and fast lifting speed.
2. The flexible shaft drive system directly drives the rotor, which runs smoothly, with low vibration and low noise.
3. Imported fluorine-free compressor unit, double-cycle refrigeration, strong heat and cold exchange capacity, no environmental pollution, accurate temperature control.
4. Microcomputer processor is used to precisely control the speed, temperature and time, digital display, 10 kinds of program storage, and 10 kinds of lifting rate.
5. Door cover independent motor servo, reduce the labor intensity of the operator, overspeed, over temperature automatic protection, unbalance protection, the body is made of high quality steel structure, built-in steel explosion-proof protection inner sleeve, three layers of protection, safe and reliable, easy to use.
6. The rotor body is made of national aviation standard aluminum LC4, processed by forging treatment and A-level deep flaw detection, and passed static balance test and dynamic balance test to ensure the safety and reliability of the rotor body.
7. Three-stage damping, the centrifugal effect is optimal.
8. 18 bags of 400ml whole blood can be separated at one time, and can be equipped with a 2400ml centrifuge bottle, and 14400ml samples can be separated at a time.
Model | FLR-7M |
Max. Speed | 7000rpm |
Max. RCF | 11900×g |
Max. capacity | 6×2400ml |
Timer | 1~9h59min |
RPM/RCF Transfer | YES |
Noise (dB) | ≤ 65 |
Temperature range | －20℃~40℃ |
Lifting rate | 10kind |
Speed accuracy | ±20r/min |
Temperature accuracy | ±1℃ |
Power (V/Hz) | AC 380V 50HZ 15A |
Dimension (W x D x Hmm) | 940×890×1000mm |
Weight (Kg) | 600KG |
Certificates | CE,ISO & Calibration report are available |
Optional rotors:
NO. | Rotor type | Max. speed (r/min) | Max. volume | Max. RCF (xg) |
No30324 | Angle rotor | 7000 | 6×1000ml | 11900 |
No30399 | Swing rotor | 4000 | 6×2400ml | 5330 |
