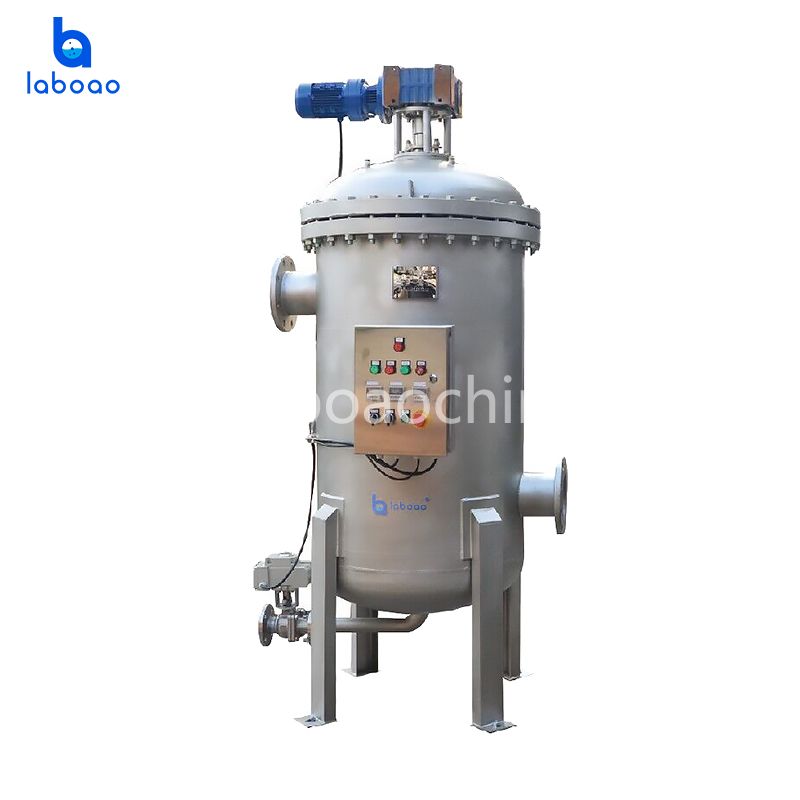

Scrape Type Automatic Self Cleaning Filter For Viscosity Fluid Filtration
Scrape Type Automatic Self Cleaning Filter For Viscosity Fluid Filtration

Scrape Type Automatic Self Cleaning Filter For Viscosity Fluid Filtration

LABOAO scraper-type automatic self-cleaning filter is a new generation of self-cleaning filter, and its technology has reached the world's leading level. Its scraper filter is not only used for water filtration, but is also widely used for self-cleaning filtration of solvents, acid and alkali solutions, polymers, coatings and other viscous materials. It has higher efficiency, an accuracy range of 30 to 3000 microns, and can handle viscosity up to 800,000 centimeters. Boiling liquids are used in water treatment, petrochemical, metallurgy, electric power, fine chemicals, coatings, inks, papermaking, food and beverages, pharmaceuticals, metal processing and other industries.
  • ModelLSF Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

The fully automatic self-cleaning filter automatically removes particulate impurities accumulated on the surface of the filter element through efficient mechanical scraping, and automatically removes liquid containing high-concentration impurities in the collection chamber through PLC time/pressure difference control, and discharges the residual liquid. Can be recycled or discharged. The fully automatic self-cleaning filter can continuously filter online in a single machine without manual replacement and cleaning of the filter element, and does not produce filter consumables. It is widely used in pre-filtration in the water treatment industry and self-cleaning of viscous materials such as solvents, acid and alkali solutions, polymers, and coatings. Filtration, higher efficiency, more stable and reliable performance.

Working principle: Liquid flows from the inlet of the filter, flows from top to bottom, and flows through the surface of the filter to the outlet; when a certain amount of impurities are collected on the surface of the filter, the motor drives the scraper equipped with a corrector to rotate close to the surface of the filter. The impurities are scraped off and accumulated in the collection chamber with the downward liquid. When a certain amount of impurities accumulates, the automatic drain valve opens the collection chamber to discharge the liquid containing high-concentration impurities. The residual liquid can be recycled or discharged.

FEATURES

1. Fully automatic online continuous filtration, reducing labor costs and meeting factory automation operation requirements;

2. No disposable discarded filter consumables are produced, saving consumable costs and environmental treatment costs;

3. The filtration pressure loss is extremely small and the flow rate is stable, which saves pipeline energy consumption and is conducive to continuous and stable process;

4. Fully enclosed filtration to prevent leakage of hazardous materials;

5. The discharged waste liquid has high impurity concentration and can be recycled to avoid the loss of high-value materials;

6. A variety of module combinations and powerful automation modes are available to meet various filtration application needs.

SPECIFICATIONS

Model

LSF-N21

LSF-N43

LSF-N71

LSF-N110

LSF-N148

Maximum flow

35m³/h

70m³/h

120m³/h

180m³/h

240m³/h

Filter elements

Wedge-shaped mesh filter basket(30-500μm),   metal composite filter screen(30-500μm)

Scraping components

scraper (PTFE, stainless steel), scraper   (bristle, nylon, stainless steel)

Design pressure

1.0MPa, 1.6MPa

Inlet and outlet diameter

DN40-DN300

Drive form

Motor drive

Connection form

Flange, thread, quick connection

Equipment material

SS304, SS316L, carbon steel, carbon steel   lined with rubber

Control mode

Differential pressure control, time control,   manual control

WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of filtration equipment machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
