The carbon dioxide incubator is an advanced instrument for culturing cells, bacteria, and microorganisms. It is an essential product for immunology, genetics and bioengineering research. Widely used in medicine, agricultural science, pharmaceutical research and production.
1. The inner liner of the box is made of mirror stainless steel, full arc angle design without dead angle, the shell is made of high-quality steel plate, beautiful, generous, easy to clean the inner liner.
2. Six-sided heating + gas jacket design, rapid heating, no overshoot, to ensure good uniformity.
3. Large reservoir design at the bottom, water does not leak out, large evaporation area, high humidity

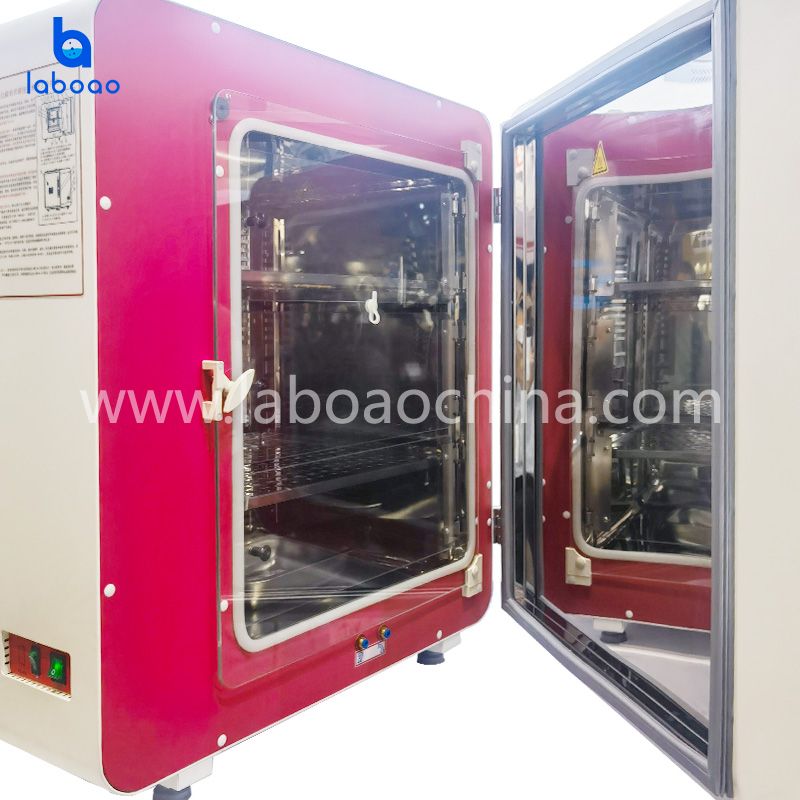

4. Double glass door structure, small impact on the internal environment when taking and placing samples.
5. Imported infrared concentration sensor, carbon dioxide concentration control is sensitive and accurate.
6. Breeze circulation system, no interference with cell culture.
7. When the door opens, the fan automatically stops to prevent the air from crossing inside and outside, and the heating stops to prevent overshooting.
8.Box non-condensation control system, to avoid condensation on the sample pollution
9. Inlet high-efficiency filter DUF, more than 0.33u dust filtration efficiency of 99.97%, minimize the box pollution.

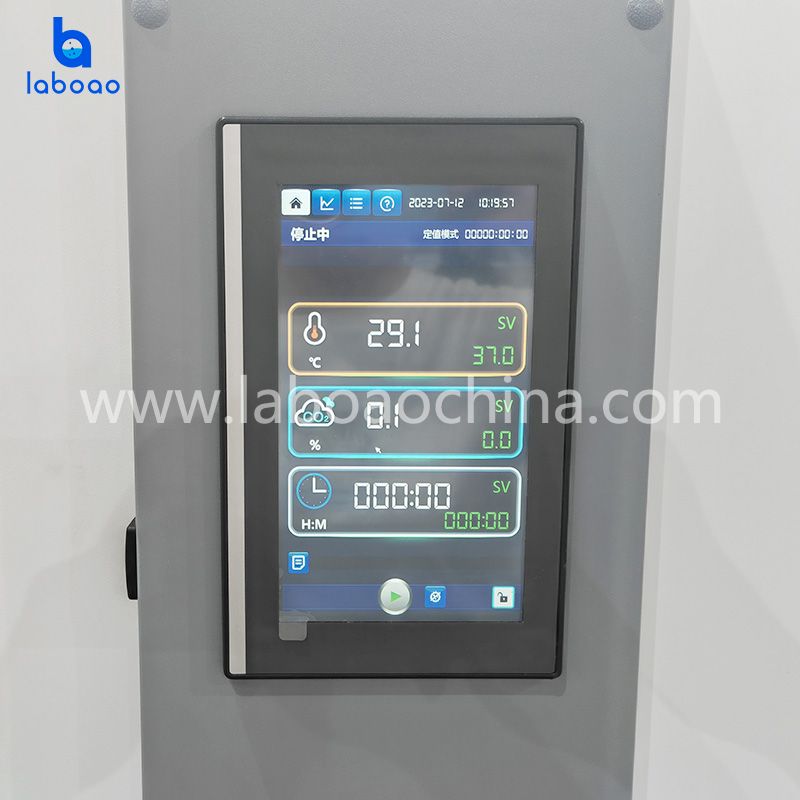

10. Man-machine interface, microcomputer intelligent design, 7-inch color LCD touch controller
11.PID control, fixed value operation, timed operation, appointment start, program mode, automatic stop, power failure memory, quick stop start.
12. Over-liter alarm, CO2 abnormal alarm
13.90℃wet heat sterilization (H90 series ), 140℃ high temperature dry heat sterilization (G14 series), 180℃ high temperature dry heat sterilization (G18 series), high-temperature sterilization method simplifies the cleaning work
14. Built-in water pump, easy to discharge condensate in the chamber
LYX-50H90 | LYX-150H90 | LYX-240H90 | |
LYX-50G14 | LYX-150G14 | LYX-240G14 | |
LYX-50G18 | LYX-150G18 | LYX-240G18 | |
Mode | Six-sided heating + breeze circulation + air jacket 50/150 incubator box can be stacked | ||
Temperature control range | RT+5 °C -60 °C | ||
Temperature resolution | 0.1 °C | ||
Constant temperature fluctuation | ±0.1 °C | ||
Temperature uniformity | ≤0.3 ℃ (at 37°C) | ||
CO2 control range | 0-20% | ||
CO2 distribution accuracy | ±0.5% | ||
Humidity in the box | ≥90%（at 37°C） | ||
Interior | Mirror stainless steel | ||
Exterior | Cold-rolled steel plate, surface chemical-resistant coating | ||
Thermal insulation material | Aluminum silicate fiber | ||
Heater | heating wire | ||
CO2 inlet | Φ6mm | ||
CO2 filter | DUF imported | ||
Partition | mirror stainless steel | ||
Rated power | 0.55kw | 1.0kw | 1.3kw |
Temperature control method | Smart PID | ||
CO2 concentration control method | Smart PID | ||
Temperature sensor | PT100 | ||
CO2 concentration sensor | Imported infrared sensor | ||
Operation mode | Customized operation mode (timer can be divided into: off timing, running timing, constant temperature timing, a total of 1000 hours), program operation mode | ||
Operating mode | 7-inch touchscreen | ||
Reservation function | After the system reaches the reservation time, it will automatically enter the running state | ||
Timing function | Off timing, running timing, constant temperature timing, 999:59 (hour, minute) | ||
Sterilization function | 90 ℃ wet heat sterilization (H90 series ), 140 ℃ high temperature dry heat sterilization (G14 series), 180 ℃ high temperature dry heat sterilization (G18 series) | ||
Historical data | 253,000 pieces of data can be stored (the storage interval is adjustable from 1 to 999 minutes), and historical data can be exported by U disk (standard) | ||
Curve | Divided into real-time curve and historical curve | ||
Safety devices | Temperature alarm, concentration alarm, door control alarm, lock screen, power-off protection | ||
Internal dimensions (mm) | 350*380*380 | 500*500*600 | 607*583*680 |
Dimensions (mm) | 627*567*680 | 777*687*900 | 884*770*957 |
Outer package size | 751*672*811 | 937*827*1007 | 1044*910*1077 |
Internal volume | 50L | 150L | 240L |
Diaphragm bearing | 15kg | ||
Number of layers | 7 | 12 | 14 |
Diaphragm spacing | 40mm | ||
Rated current | AC220V/2.8A | AC220V/5A | AC220V/5.9A |
Net / gross weight | 60/70 | 95/120 | 115/145 |
Partition | 2 pieces | 3 pieces | 3 pieces |
Optional | Partition, multi-gas culture, RS485 communication, printer, mobile phone alarm | ||
