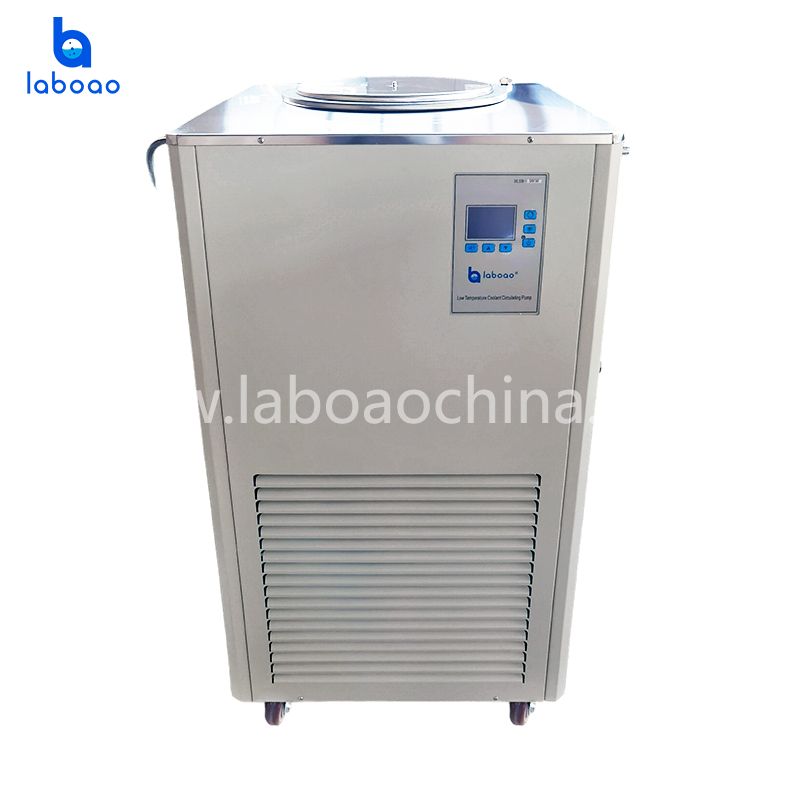

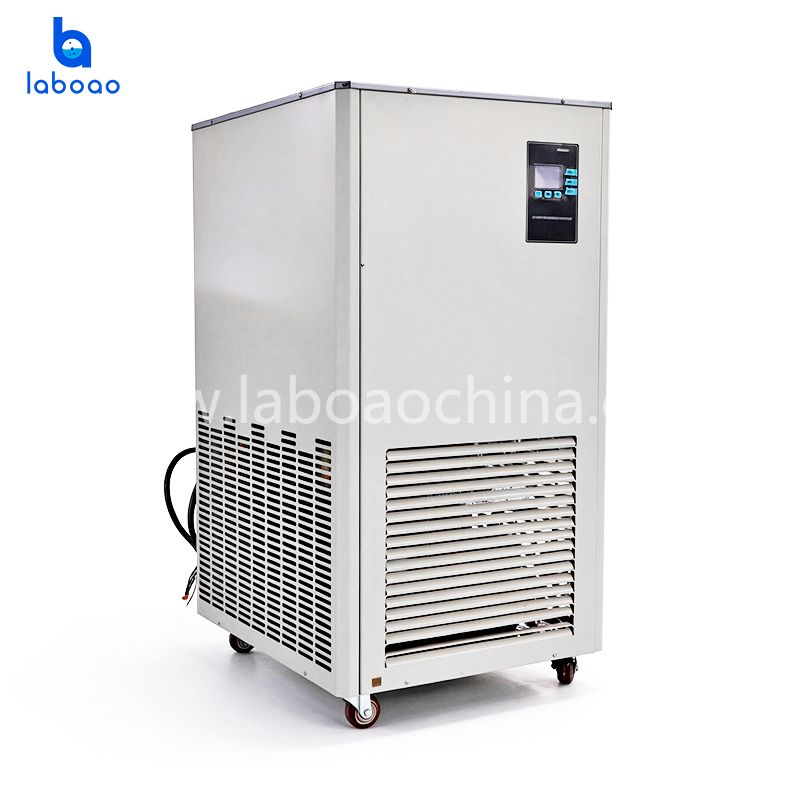

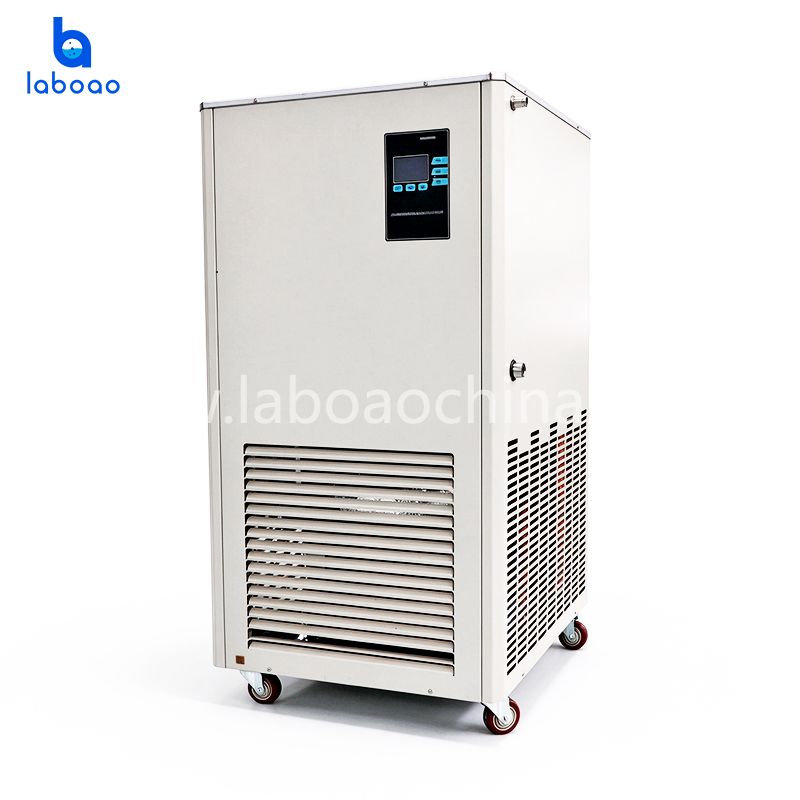

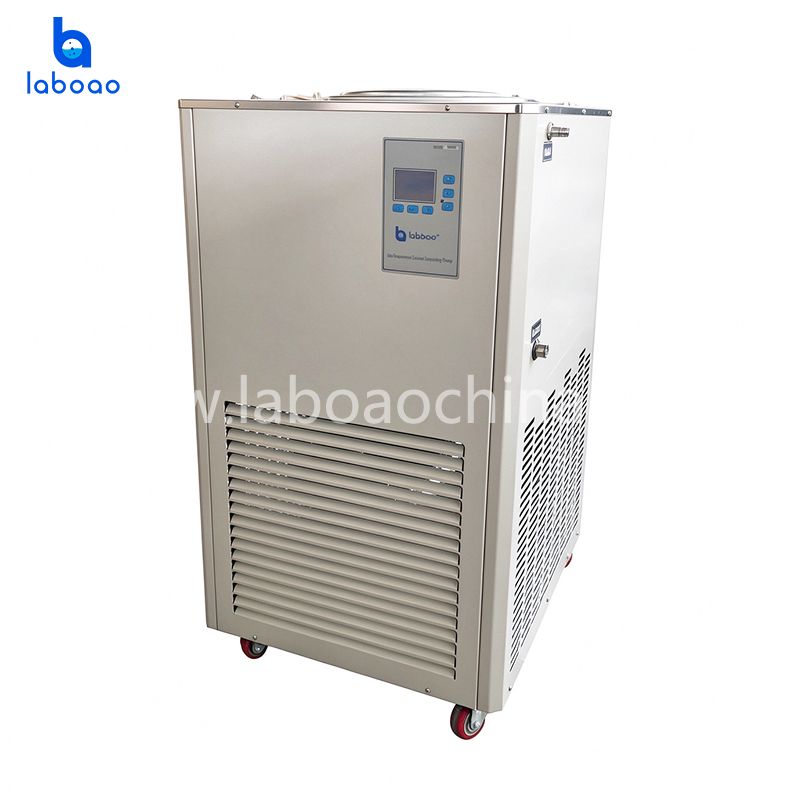

50L laboratory recirculating water chiller
50L laboratory recirculating water chiller

50L laboratory recirculating water chiller

A water chiller is a mechanical device used to facilitate heat exchange from water to a refrigerant in a closed loop system.
  • ModelDLSB-50
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

Adoption of low-temperature liquid circulation equipment of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temperature and store chemical and biological products under low-temperature. Besides, it can also be combined with Rotary Evaporator, Vacuum Freeze-drying Box, Muti-purpose Circulating Water Vacuum Pump.

FEATURES

1. Air- cooled(import) closed compressor, quality and reliable.

2. Are of high quality refrigeration unit dedicated relay, protector, capacitors and other devices, quality assurance.

3. Digital temperature display, microcomputer control, operation is simple.

4. Cooling capacity, cooling speed, which greatly improved work efficiency.

5. With normal use of water scarcity, water quality, water pressure, poor water temperature and high temperature working conditions, which can effectively protect all types of precision equipment, nstruments.

6. Adjustable flow of the circulating pump of the machine can also be customized, great to meet the actual needs of different users.

SPECIFICATIONS

Model

DLSB-50/30

DLSB-50/40

DLSB-50/80

DLSB-50/120

Temperature   range

-30°C to RT

-40°C to RT

-80°C to RT

-120°C to RT

Room Temperature

5-35°C

5-35°C

5-35°C

5-35°C

Room humidity

≤70% ventilation

≤70% ventilation

≤70% ventilation

≤70% ventilation

Power supply

220V 50HZ 1phase

380V 50HZ 3phase

380V 50HZ 3phase

380V 50HZ 3phase

Safety   protection

Delay, overcurrent, overheating

Protection for delay, overcurrent,   overheating, phase sequence, phase loss

Protection for delay, overcurrent,   overheating, phase sequence, phase loss

Protection for delay, overcurrent,   overheating, phase sequence, phase loss

Screen display

LCD screen, key operation

LCD screen, key operation

LCD screen, key operation

LCD screen, key operation

Temperature   accuracy

±0.1°C

±0.1°C

±0.1°C

±0.1°C

Temperature   sensor

PT100

PT100

PT100

PT100

Total power

2485W

5605W

10879W

16075W

Compressor type

3P

7P

7P

7P

Compressor   quantity

1

1

2

3

Compressor power

2205W

5145W

10290W

15435W

Cooling capacity

6972W

16268W

32536W

48804W

Power

100W

280W

280W

280W

Flow

20-40L/min

30-50L/min

30-50L/min

30-50L/min

Lifting head

4-6M

10-12M

10-12M

10-12M

Pressure

≤0.4MPa

≤0.4MPa

≤0.4MPa

≤0.4MPa

Power

180W

180W

309W

360W

Heat exchange   area

21.2

21.2

32.2m²

42.4m²

Air volume

3400m³/h

3400m³/h

5690m³/h

6800m³/h

Refrigerant

R22

R22

R22

R22

Condensing coil

Φ16 Copper tube nickel plated

Φ16 Copper tube nickel plated

Φ16 Copper tube nickel plated

Φ16 Copper tube nickel plated

Material

Cold plate spray anticorrosion

Cold plate spray anticorrosion

Cold plate spray anticorrosion

Cold plate spray anticorrosion

Tank size

Φ450x350H (mm) about 55L

Φ450x350H (mm) about 55L

Φ450x350H (mm) about 55L

Φ450x350H (mm) about 55L

Outer loop   interface

Φ16mm

Φ16mm

Φ16mm

Φ16mm

Dimension

795x770x(1150+500)mm

795x770x(1150+500)mm

845x1100x(1365+400)mm

/

Weight

119KG

124KG

/

/

Package size

830x740x1280mm(wooden box0.79m³)

830x740x1280mm(wooden box0.79m³)

1190x880x1540mm(wooden box 1.61m³)

/

Package weight

162KG

178KG

363KG

/
