Laboratory Microbial Culture Biochemical Incubator

Special thermostat for the cultivation, preservation, plant cultivation and breeding experiments of bacteria, molds and microorganisms
  • ModelLPX Series
  • BrandLABOAO
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

2 Advantages Of LABOAO Biochemical Incubator

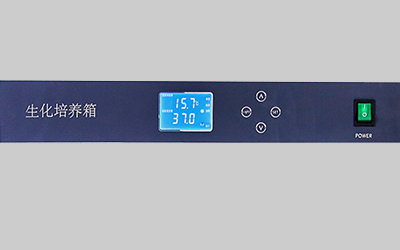

Laboratory Microbial Culture Biochemical Incubator detail - Multi-function control panel
1. Multi-function control panel

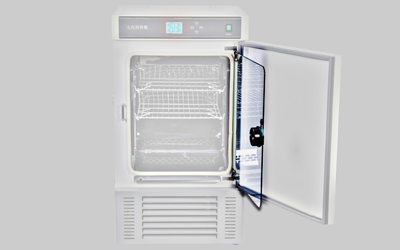

Laboratory Microbial Culture Biochemical Incubator detail - Safety glass observation window
2. Safety glass observation window


DESCRIPTION

Applicable to environmental protection, health and epidemic prevention, drug supervision, agricultural and livestock, aquatic products and other scientific research, colleges and production departments. It is a special thermostat for water body analysis and BOD determination, bacteria, mold, microbial culture, preservation, plant cultivation, and breeding experiments.

FEATURES

1. LCD multi data full screen display, power failure memory, power failure compensation

2. Convenient operation, constant value operation, regular operation and automatic stop

3. Special function key to realize temperature setting

4. Auxiliary menu, realize over rising alarm, deviation correction and menu locking

5. Forced air supply by centrifugal turbine makes the temperature more uniform

6. Power off protection, parameter memory and call recovery

7. Compressor overload protection



Functionality

1. LCD 30 segment program control, repeated step, step operation

2. Loop self diagnosis, sensor fault alarm, upper and lower line over temperature alarm

3. Intelligent defrosting

4. Monitor the timing

5. Over lift preventer

SPECIFICATIONS

Model

LPX-70B/

LPX-70BX

LPX-150B/

LPX-150BX

LPX-250B/

LPX-250BX

Mode

Forced   convection

Performance

Temperature   control range

0-65

Temperature   resolution

0.1

Constant temperature fluctuation

High   temperature   ±0.5

Low temperature ±1

Temperature   uniformity

±1

Constitute

Interior   decoration

Mirror stainless   steel

Exterior   decoration

Cold rolled   steel sheet, surface coating

Thermal   insulation material

polyurethane

Heater

Stainless   steel heating pipe

Rated power

0.7kw

1.0kw

1.4kw

compressor

Air cooled   hermetic compressor

Cryogen

R134A

Defrosting   structure

Type B:   manual; type BX: automatic

Lead hole

One with   inner diameter of 52mm

Controlled   external power supply

External one

Controller

Temperature   control mode

Type B:   Single Segment LCD PID; type BX: 30 Segment LCD program

Temperature   setting mode

Touch the   button to set

Temperature   representation

Measuring   temperature display: LCD upper display; setting temperature display: LCD   lower display

Timer

B: 0-99.9h;   BX: 0-99.9*30(with timing waiting function)

Operation   function

Type B:   fixed value operation, timing operation, automatic stop

BX type:   program running

Program mode

Type B:   optional; type BX: standard

Additional   functions

Type B:   deviation correction, menu key locking, power failure compensation, power   failure memory

Type BX:   there are also over rising preventer, cumulative timing, loop self diagnosis   and intelligent defrosting

Sensor

PT100

Safety   device

Type B: over   rise alarm and overload protection;

type BX:   with over rise preventer and loop self diagnosis

Specifications



Internal   dimensions (mm)

420*350*500

500*400*750

500*500*950

Dimensions   (mm)

570*560*1073

640*620*1260

640*710*1463

Outer   package size

720*720*1120

790*770*1380

800*870*1580

Internal   volume

70L

150L

250L

Diaphragm   bearing

15kg



Number of   diaphragm layers

5

9

12

Diaphragm   spacing

60mm

Rated   current

AC220V/2.3A

AC220V/3.6A

AC220V/5.5A

Net / gross   weight

65/83

86/106

100/127

Accessories

Partition

2

Partition   frame

4

Configuration   can be increased

Diaphragm,   RS485 interface, printer, recorder, external communication, remote control,   wireless SMS alarm, U disk data storage
