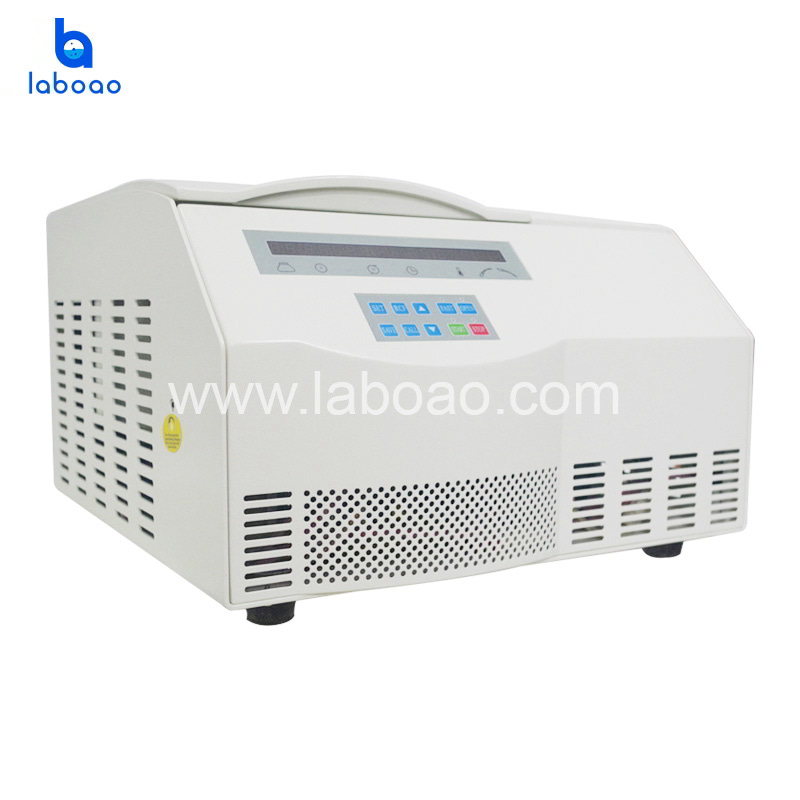

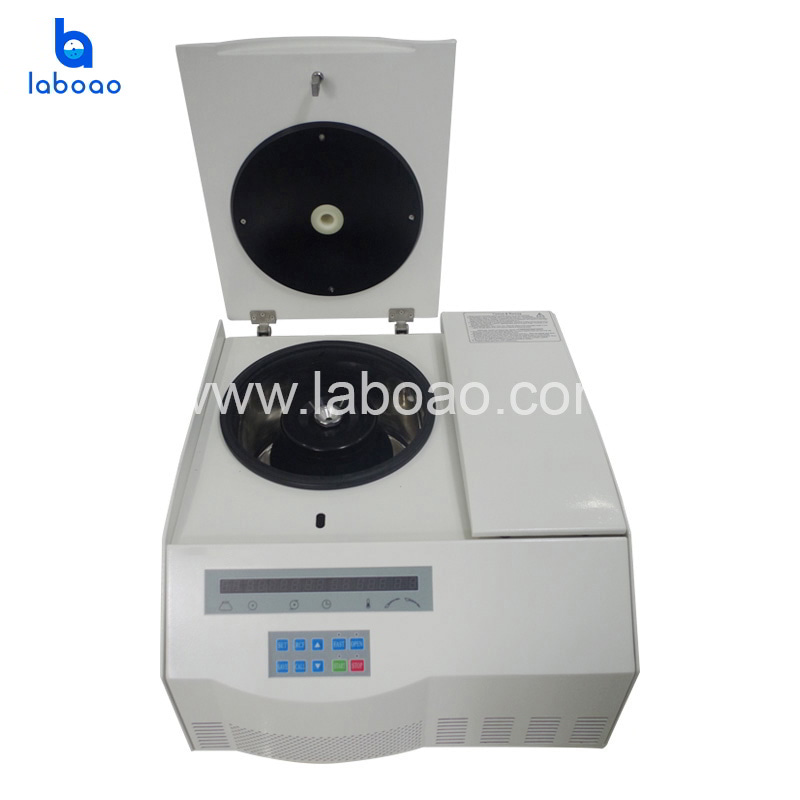

High speed centrifuge is a technique which involves the application of centrifugal force to separate particles from a solution. It is widely used in the field of medicine, life science, agriculture science, institute and so on, used in the area of protein precipitation, RNA extraction and clinical sample processing.
1. Brushless motor, which is maintenance-free, with large torque.
2. Speed increasing and decreasing is very fast.
3. Fluorine-free compressor, no environmental pollution and precise temperature control.

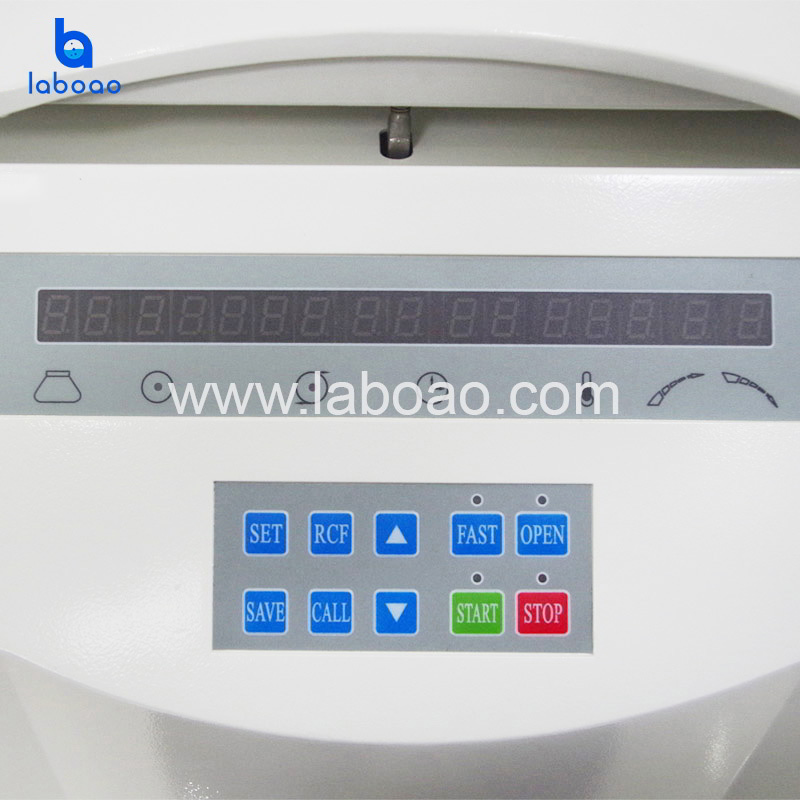

4. Microcomputer processor, digital display for speed, time and temperature etc. Switch to display speed and RCF.
5. Can store and set 10 programs, 10 lifting rates are available.
6. Door cover independent motor servo, reduce the labor intensity of the operator, overspeed, over temperature automatic protection, unbalance protection, the body is made of high quality steel structure; safe and reliable, easy to use.

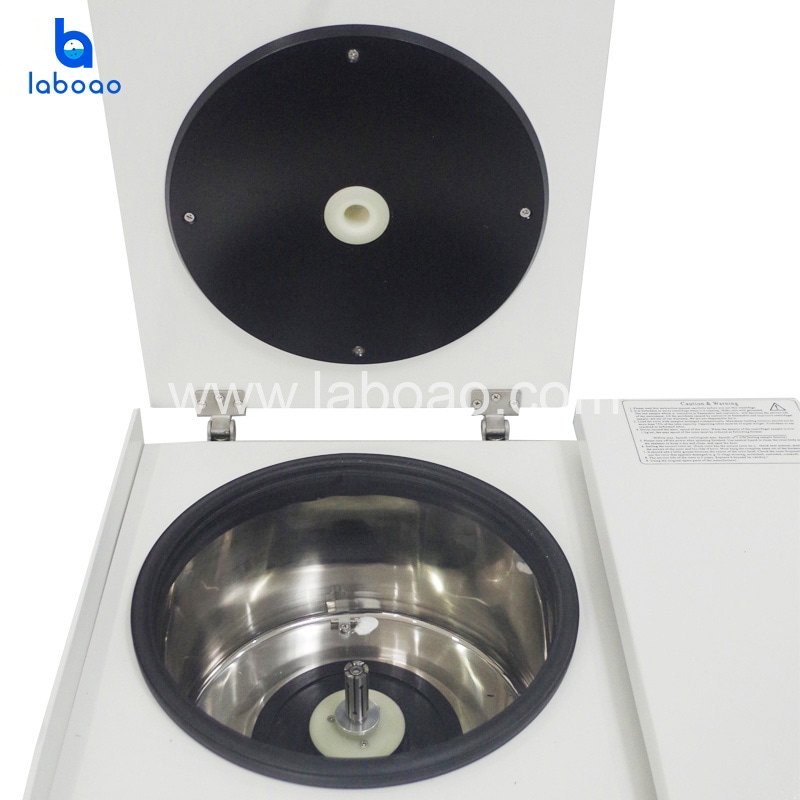

7. Unique spring cone sleeve is used to connect the rotor and the spindle. Easy to change the rotor, more safety and reliable, and easy to use.

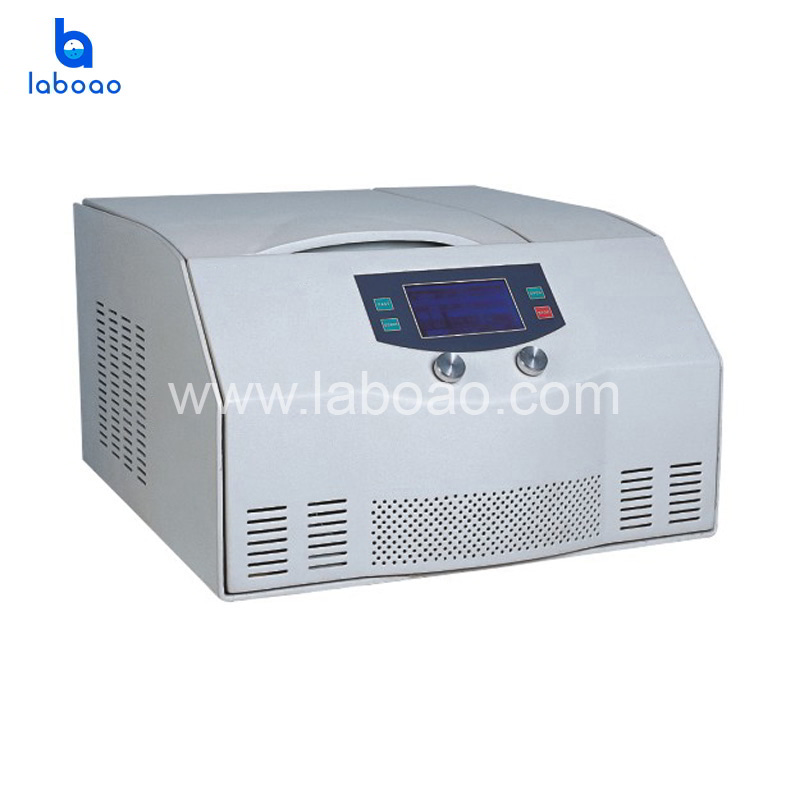

8. LCD display screen is optional.
9. Three-stage vibration reduction, to reach the best centrifugal result.
Max speed | 16000r/min |
Max RCF | 20600*g |
capacity | 6*100ml |
Speed accuracy | ±20r/min |
Time range | 1~99h59min |
Temp. range | -20°C～40°C |
Temp. accuracy | ±1°C |
Noise | ≦58dBA |
Rotor identification | Automatic identification |
Dimension | 515*370*320mm |
Packaged dimension | 730*430*425mm |
Weight | 42KG |
Packaged weight | 48KG |
Power | AC110/220V, 50-60HZ,10A |
Package | wooden box |
Optional rotors:
Rotor No. | Rotor type | Max . speed (r/min) | Capacity | Max. RCF |
NO30416 | Angle rotor | 15000 | 30×0.5ml | 18510 |
NO30402 | Angle rotor | 14000 | 40×0.5ml | 19970 |
NO30401 | Angle rotor | 16000 | 12×1.5/2ml | 16270 |
NO30403 | Angle rotor | 15000 | 24×1.5/2ml | 20600 |
NO30404 | Angle rotor | 13500 | 30×1.5/2ml | 19340 |
NO30444 | Angle rotor | 11000 | 48×1.5/2ml | 12840 |
NO30405 | Angle rotor | 15000 | 16×5ml | 19350 |
NO30406 | Angle rotor | 14000 | 12×7ml | 16370 |
NO30415 | Angle rotor | 14000 | 6×10ml | 16460 |
NO30408 | Angle rotor | 13000 | 12×10ml | 14510 |
NO30407 | Angle rotor | 10000 | 12×15ml | 11840 |
NO30639 | Angle rotor | 5000 | 24×15ml | 3080 |
NO30627 | Angle rotor | 5000 | 30×15ml | 3830 |
NO30409 | Angle rotor | 12000 | 8×20ml | 14510 |
NO30410 | Angle rotor | 12000 | 6×30ml | 14000 |
NO30411 | Angle rotor | 11000 | 6×50ml | 13480 |
NO30412 | Angle rotor | 12000 | 6×70ml | 10810 |
NO30413 | Angle rotor | 12000 | 4×100ml | 14850 |
NO30414 | Angle rotor | 8000 | 6×100ml | 7280 |
NO30437 | Angle rotor | 12000 | 24 capillary | 15800 |
NO30980 | Swing rotor | 13000 | 4×5ml | 14960 |
NO30676 | vertical rotor | 4000 | 2×3×48 hole | 2300 |
NO30935 | Plate rotor | 14000 | 16×5ml | 12660 |
We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.
Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.
Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!
