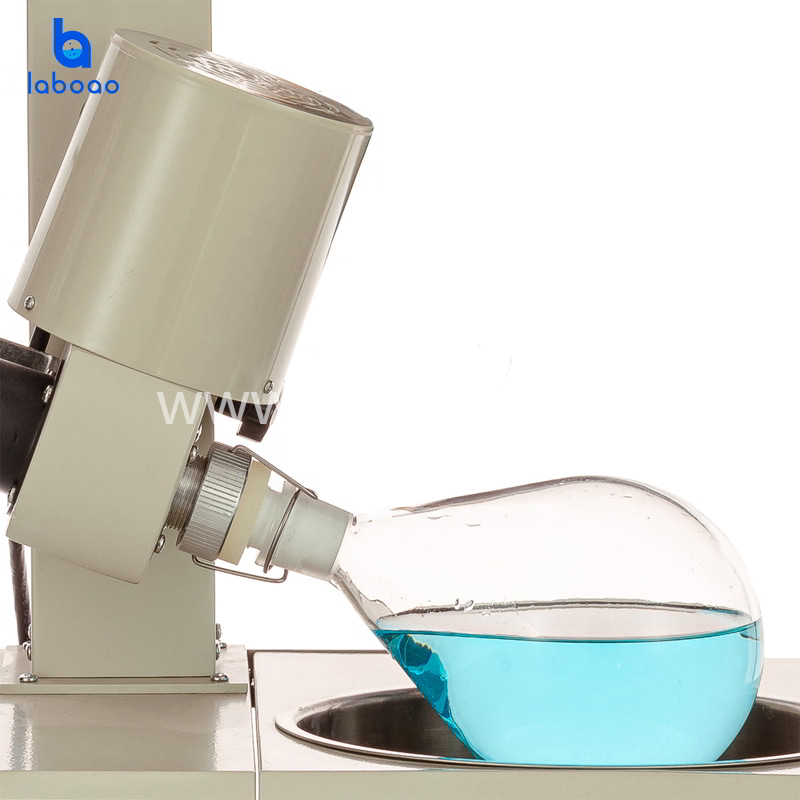

1L Rotary Evaporator With Flask Hand Lift

Rotary evaporator (or rotavap/rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
  • ModelLRE-52A
  • BrandLABOAO
  • StockIn Stock
  • CustomizedOEM/ODM
  • CertificationCE
  • Min. Order1 unit
  • PortAny port in China
  • PackagePlywood case package
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DESCRIPTION

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.


FEATURES

Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.

1. Quick and easy lifting mechanism.

2. Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.

3. Vertical condensation system of high rate of evaporation.

4. Vacuum sealing way.

5. Automatic control temperature digital display.

SPECIFICATIONS

Model

LRE-52A

Voltage/Frequency

220V/50HZ

Whole power

1030W

Rotary power

30W

Heating power

1000W

Vacuum degree

0.0098Mpa

Rotary flask volume

Eggplant shape   1L,Φ131mm/24# standard port

Receiving flask volume

Round shape   0.5L,Φ105mm/24#standard port

Rotary speed

0-120rpm/min

Temp.cotrolling range

room   temperature -99

Temp. accuracy

±1

Hosting lifting distance

150mm

Condenser size

Φ85*450H(mm)
  Upper with 29#standard port and equipped with glass exhaustor, down with 29#   standard plug

Condensation area

0.17

Four-way bottle diameter

Upper with 29#   standard port, down with 24# standard plug, left with 19# standard port,   right with 24# standard plug

Charging valve

19# standard   plug valve, feed nozzle(pagoda-shape connectors),outer diameter 10mm

Vacuum suction nozzle

  29# standard plug valve, vacuum nozzle(pagoda-shape connectors), outer   diameter 10mm

Condensing coil in and out circuation nozzle

Pagoda-shape   connectors, outer diameter 12mm

Pot bravery size

Φ220*120H(mm)  about 4.5L3.5kg

Overall dimensions (W*L*H)

640*430*(860-1010)mm

Net weight

15kg

Packing dimensions

600*460*470mm,   0.13m³

Packing weight

18.5kg



APPLICATION

  • Application of 1L-5L Rotary Evaporator in Chemical Laboratories
    Chemical Laboratories
  • Application of 1L-5L Rotary Evaporator in Pharmaceutical Industry
    Pharmaceutical Industry
  • Application of 1L-5L Rotary Evaporator in Essential Oil Extraction
    Essential Oil Extraction
  • Application of 1L-5L Rotary Evaporator in Cannabis Industry
    Cannabis Industry
  • Application of 1L-5L Rotary Evaporator in Food and Beverage Industry
    Food and Beverage Industry
  • Application of 1L-5L Rotary Evaporator in Environmental Analysis
    Environmental Analysis
  • Application of 1L-5L Rotary Evaporator in Academic Research
    Academic Research

WHY CHOOSE US

  1. Factory direct sales with competitive price.
  2. Premium quality with CE & ISO certification.
  3. Strong product OEM & ODM customization capability.
  4. Promise production & on-time delivery.
  5. Perfect after-sales service, free product accessories.
  6. 15 years of experience in R&D and production of 1l-5l rotary evaporator machine.
laboao certification

OUR FACTORY

We have a standard production workshop and a complete production team. They always produce a serious and responsible attitude to produce each product. Our R&D team is made up of multi-aspects professional engineers such as design engineer,technology specialist ,qualified specialist and process control manager, etc. Our qualified specialists strictly realize the process comprehensive supervision based on our quality process control system, which contains products design, research and development, test, production, quality inspection and packaging.

laboao factory

PACKAGING & SHIPPING

Our product packaging has been proven over the long term and we usually have plywood boxes or cartons with trays. We will arrange the appropriate packaging according to the weight and size of the goods. Of course, you can also choose the packaging form.

laboao packaging and shipping

CUSTOMER CASES

Our laboratory instruments and equipment are used in many scientific laboratories, scientific research institutions, universities, hospitals, centers for disease control and other institutions, and are combined with many well-known biopharmaceuticals, new energy, electronics companies, food processing, environmental protection, etc. Enterprise cooperation, our stable and reliable products are exported to more than 120 countries around the world, and have been highly recognized by them, believe LABOAO, we grow together!

laboao customer cases

AFTER-SALE WARRANTY


Authenticity GuaranteedWe assure you purchase our products are 100% certified products.
24*7Hours ServiceProvide 7*24 hours service telephone & support email to help you solve problems quickly.
Technical SupportProvide equipment installation, adjustment, operation training, etc.
1 Year WarrantyFree maintenance and accessories within warranty period(not caused by human factors).
