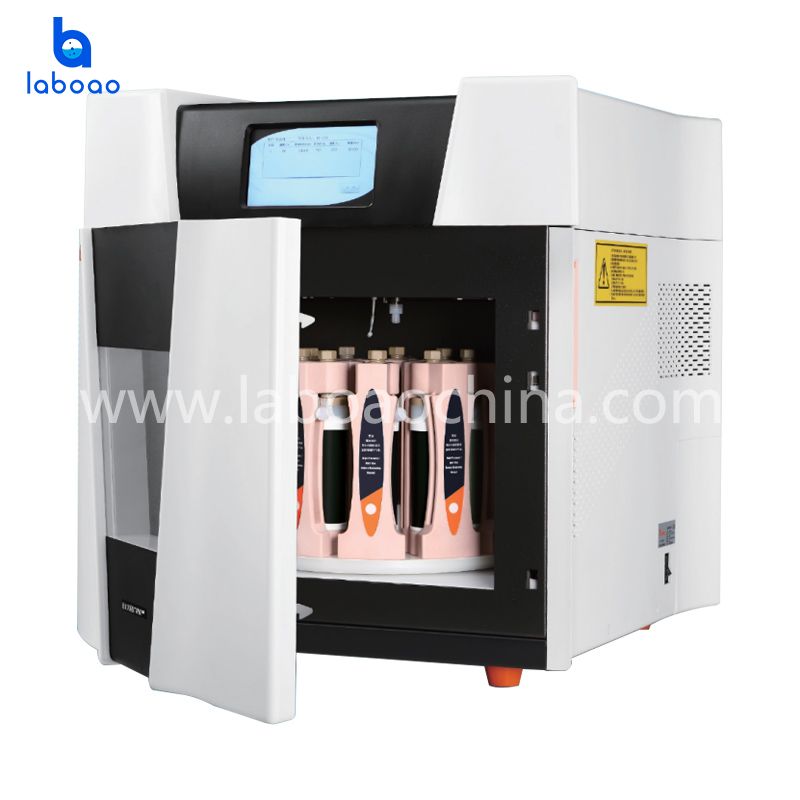

Touch Screen Laboratory Microwave Digestion Extraction System

Touch Screen Laboratory Microwave Digestion Extraction System

TANK microwave digestion instrument has always adhered to the principles and concepts of "operating safety", "efficient and convenient" and "durable" from research and development to production. It is a microwave digestion workstation that is widely applicable to various digestion needs and the modernization of laboratories.

ModelTNAK
BrandLABOAO
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION

TANK series microwave digestion system adopts the international advanced double magnetron frequency microwave heating system and realizes the high power microwave balanced magnetic field safety heating. it has multiple stringent safety guarantee mechanisms to ensure that TANK has a high level of safety performance and data accuracy; at the same time, it is highly The intelligent man-machine dialogue operating system and wireless control module make the experiment process efficient, convenient and humanized, and bring scientific, efficient, safe and comfortable operation experience to scientific and technological workers.

FEATURES

1. Multiple safety protection function: It has more than ten safety protection measures to ensure experiment safety，including temperature control system, pressure control system,real-time temperature and pressure abnormal monitoring system, explosion-proof security doors, thicken cavity with 10 layer TEFLON coating, High-power exhaust system, program with suspend or start at any time. Ladder-style control temperature system, the material is TFM for the vessel and aerospace composite material for the vessel cover, the vessel cap with PFA and the pressure shrapnel use PEEK.

2. Optical fiber temperature control system: The TANK adopts the internationally advanced optical fiber temperature control system.It avoids producing the spark which other temperaturecontrol mode caused, effectively eliminates microwave interference temperature control system and other factors. It not only achieves precision control temperature but also it is themost safe microwave digestion temperature control mode at present.

3. The outer tank of Xtra Fiber, a high-strength composite fiber that does not burst, bursts, or tears, and has good corrosion resistance.

4. The sturdy and durable industrial-grade furnace chamber structure strengthens the impact resistance of the furnace chamber

5. Fast cooling of the digestion tank within 15 minutes

6. Multi-core integrated optical fiber temperature control system, accurate temperature control and uniform digestion

7. Real-time multi-task operating system, remote control observation, can be equipped with Wi-Fi tablet control, convenient and comfortable operation;

8. COT real-time temperature and pressure abnormal monitoring system ensures safe operation without fail

9. Upgradable dual-screen design, real-time monitoring of the operation of the digestion tank in the furnace chamber

SPECIFICATIONS

Model	TANK PRO	TANK BASIC
Cavity	48L Resonant Cavity
Digestion method	50 preinstalled methods, programming 100 methods	20 preinstalled methods, programming 50 methods
Temperature measurement range	-40°C - 305° C	0°C - 305 °C
Temperature accuracy	±1°C
Pressure accuracy	±0.01Mpa
Temperature control method	Optical Fiber
Max pressure	80Mpa C	70Mpa
Vessel volume	100mL
Vessel quantity	12 Vessels
Cooling method	forced air cooling
TEFLON coating	10 layer C	8 layer
Interface	USB, RS232
Display	7" LCD screen
Control model	Touch screen
Power supply	220VAC±10% 50Hz
Power output	1600W
Dimensions	520mmx593mmx660mm
Weight	67kg

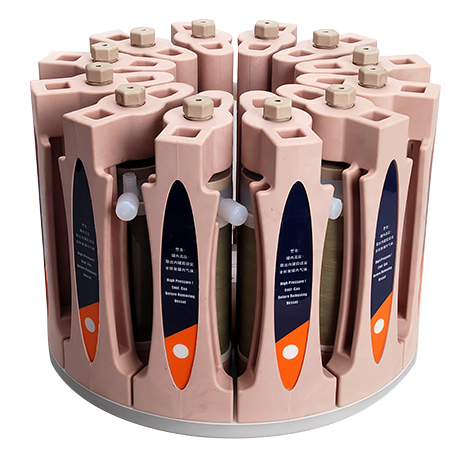

12-position rotor TK-100 (model) airtight high-pressure reaction tank:

Maximum design pressure	15MPa (about 2200psi)
Maximum design temperature	300°C
Inner tank volume	100ml
Tank rack material	PP + glass fiber high-strength composite material
Outer tank material	Super aerospace composite fiber material Xtra Fiber
Inner tank material	TFM (Enhanced and Improved Polytetrafluoroethylene)
Maximum batch size	12 cans; TANK BASIC comes standard with 10 cans, which can be increased to 12 cans
