High Pressure And High Throughput Microwave Digestion Instrument

High Pressure And High Throughput Microwave Digestion Instrument

TANK PLUS microwave digestion instrument adheres to the consistent quality of the TANK series, "safe operation, efficient and convenient, durable", and has a number of product features. Accurate temperature/pressure measurement and control and efficient dual-magnetron frequency conversion microwave heating technologies can effectively improve the digestion ability of samples; multiple harsh mechanisms ensure the safety of experimenters. At the same time, intelligent UI design and cloud services and other functions It brings a comfortable operating experience to scientific and technological workers. It is a high-pressure and high-throughput microwave digestion instrument.

ModelTNAK PLUS
BrandLABOAO
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION

TANK PLUS adopts dual magnetron frequency conversion microwave heating system, which realizes high-power microwave balanced magnetic field safe heating; multi-core integrated optical fiber and infrared temperature measurement dual temperature measurement system; large cavity design can be used for 12, 24, and 40 turntables .

TANK PLUS has multiple strict safety guarantee mechanisms to ensure that the instrument has a high level of safety performance and data accuracy; at the same time, TANK PLUS's highly intelligent man-machine dialogue operating system and cloud service function make the experiment process efficient, convenient and user-friendly. Technologists bring scientific, efficient, safe and comfortable operating experience; extraction accessories can be selected for atmospheric extraction experiments.

FEATURES

1. Patented structure—the prefect combination of high-throughput digestion and high-pressure digestion.

2. High-strength aerospace composite fiber outer vessel, perfect within mechanical strength and corrosion-resistance

3. Safety Bolt design, being fully sealed and digested while achieving quantified safety pressure relief

4. Optical-fiber and IR temperature measurement system, having precise temperature control and simultaneous monitoring of abnormalities to ensure accurate results and experiment safety

5. High precision semiconductor pressure sensor with high corrosion resistance and high mechanical strength

6. Dual magnetron inverter control system ensures consistent sample digestion

7. Powerful and convenient software assistant in accordance with FDA 21 CFR Part 11

8. Support by the cloud service function, expanding the storage capacity while keeping the data in safe

9. The digester integrated dual LCD screen display, clearly showing the digestion state and experiment-process

10. A variety of supporting tools available, easy to take Experiment

SPECIFICATIONS

Model	TANK PLUS
Power	220~240VAC 50/60Hz 20A
Microwave source	2450MHz, dual magnetron design, high energy microwave emission
Installation power	3800W
Maximum output power	2000W
Microwave cavity	66L large volume 316L stainless steel cavity, inner and outer multi-layer corrosion-resistant Teflon spray
Batch numbers	12 Vessels
Explosion-proof safety door design	Safety door designed based on 3-D directional explosion-proof mechanism, anti-microwave leakage integrated with anti-flow groove structure design
Pressure monitoring system	High-precision novel semiconductor pressure sensor with pressure control range: 0~10MPa (1450psi), control accuracy ±0.01MPa
Temperature monitoring system	Non-metallic multi-core optical fiber + full tank IR dual temperature measurement, temperature control range: -40~305 °C, temperature control accuracy: ±0.1 °C
Passive protection system	COT real-time temperature and pressure anomaly monitoring system can automatically alarm and cut off microwaves to protect users' safety when temperature and pressure anomalies occur in any one of the reaction vessels.
Software	Android system; video SOP; built-in method library; cloud service, data storage and sharing; Wi-Fi remote connection, etc.
Communication ports	With USB port and network cable port
Video Monitoring	With an internal camera for real-time monitoring of the operation of the digestion vessel in the chamber
Furnace exhaust system	Cool to room temperature for less than 15 minutes
Microwave extraction module	Normal pressure extraction experiment
Working environment	0~40℃ / 15~80%RH
Overall physical size / net weight	600685660 (WDH)/62kg

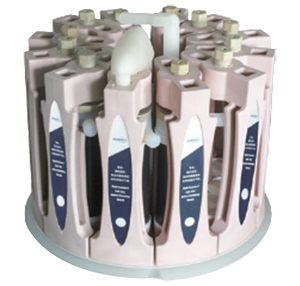

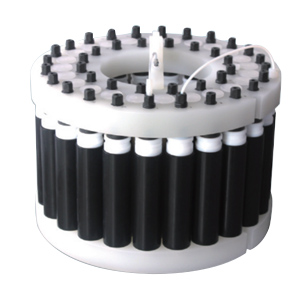

Reaction tank name	High Pressure Digestion Tank	Ultra-high pressure digestion tank
Batch volume	12	24 /40
Inner tank material	TFM	TFM
Outer tank material transfer	Aerospace Composite Fiber	Aerospace Composite Fiber
Sub-frame structure	Independent tank frame structure for single digestion tank	High-strength integrated rotor frame
Reaction tank volume	100mL	70mL
Maximum design temperature	300℃	300℃
Maximum design pressure	15MPa	15MPa

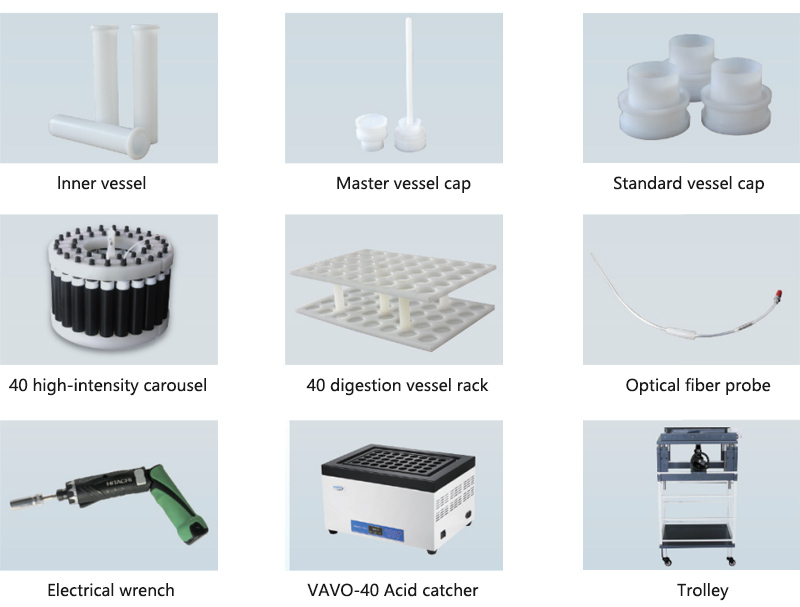

CONFIGURATION LIST
