Closed Microwave Digestion Extraction System

Closed Microwave Digestion Extraction System

MDS-6G is built to meet the needs of a wide range of applications in the market, and is widely used in various fields such as heavy metal detection, organic pollutant extraction, and material synthesis. The product has the characteristics of safe operation, lightness and flexibility, and durability. Its compact furnace cavity design, high-power microwave output, and high-pressure closed digestion tank can achieve quantitative and safe pressure relief while improving the digestion capacity of the sample.

ModelMDS-6G
BrandLABOAO
PortAny port in China
PackagePlywood case package

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

DESCRIPTION

The outer vessel of MDS-6G exclusively made by ultrastrength aerospace composite fiber is invincible in anti-explosion, and its performance indicators such as corrosion resistance, high temperature/impact/pressure resistance are far better than that of the widely used modified PEEK engineering plastics vessel (this material is fusible at high temperature, fragile at high pressure and explosive by chemical corrosion). The compressive strength of aerospace composite fiber is up to 10000psi and temperature 500-600℃, fundamentally eliminating safety risks to operator in use.

FEATURES

1. The outer tank of Xtra Fiber, a high-strength composite fiber that will not burst, burst or tear, is corrosion-resistant and easy to clean.

2. Piezoelectric crystal pressure measurement technology to ensure that the main control tank is free of cross-contamination

3. SafetyBolt not only guarantees safety but also high accuracy of test results

4. Uni-Turn technology for continuous rotation of the digestion rotor in the same direction to increase uniformity and reliability

5. 15 minutes of rapid cooling of the digestion tank

SPECIFICATIONS

Model	MDS-6G
Power	220-240 VAC 50/60Hz 8A
Microwave frequency	2450MHz
Installed power	1800W
Maximum output power	1000W, non-pulse continuous automatic variable frequency control

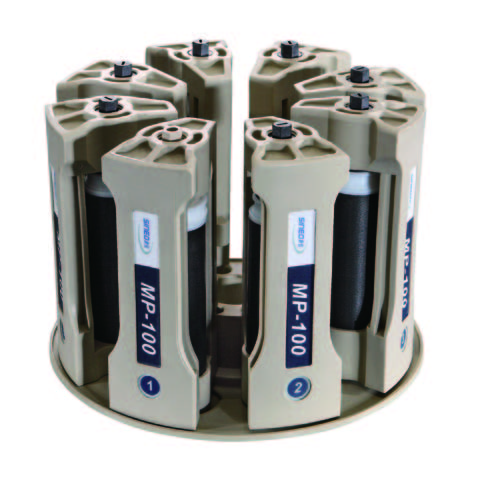

Turntable design	Load 8 MP-100 closed digestion vessels at same time
Pressure measurement and control system	Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa
Temperature measurement and control system	High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃
Outer vessel material	Explosion-proof outer vessel made of aerospace composite fiber
Inner vessel material	TFM material
Chamber exhaust system	High-power anticorrosion axial fan, exhaust speed: 3.1 m3/min
Operating ambient temperature	0-40℃
Working environment humidity	15-80%RH
Whole physical size	450 x 515 x 510mm (W x D x H)
Net weight	40 KG

Name	MP-100 closed high-pressure reaction vessel
Maximum Pressure	15MPa(2250psi)
Maximum sustained temperature	300 °C
Maximum working temperature	250 °C
Inner vessel volume	100ml
Outer vessel material	Ultra strength aerospace composite fiber
Inner vessel material	TFM (Modified PTFE)
Batch volume	Standard 6 cans, the maximum can be increased to 8 cans
