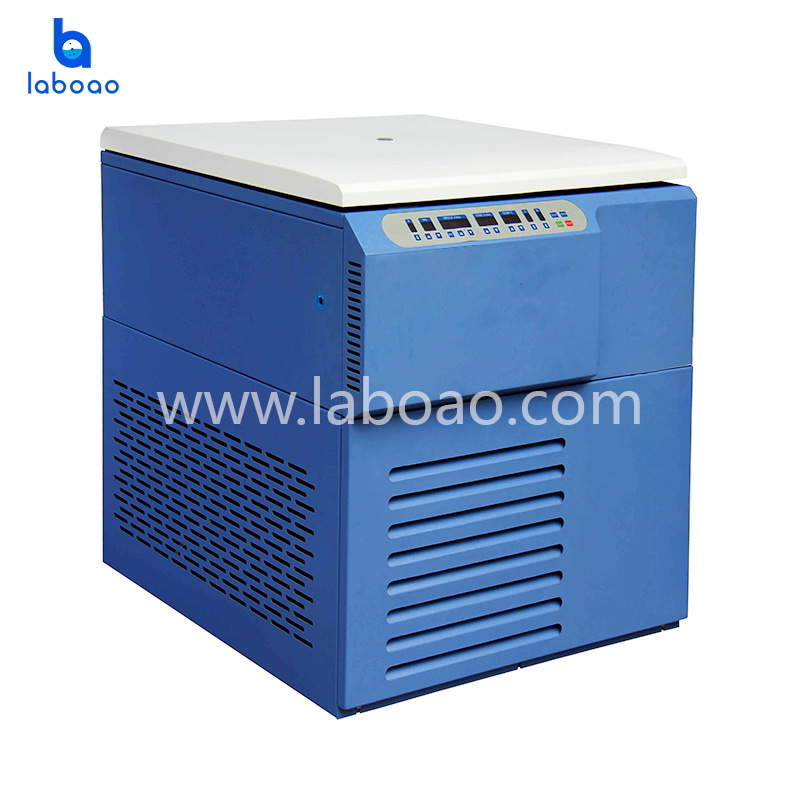

FLR-7M refrigerated ultra low speed centrifuge

FLR-7M refrigerated ultra low speed centrifuge

FLR-7M low speed refrigerated centrifuge is a general purpose floor type centrifuge used in scientific and medical research, which is designed to provide a safe and reliable solution to separate liquids based on density in a small footprint.
  • BrandLABOAO
  • ModelFLR-7M
  • PortAny port in China
  • PackagePlywood case package
Payment More
We also supports L/C、D/A、D/P、Western Union、MoneyGram、Discover payments for offline orders.

DESCRIPTION

The ultra-large capacity refrigerated centrifuge is suitable for production stations of blood stations, pharmaceutical plants, biochemistry, biological products, etc. With a capacity of 14.4 liters, it is an ideal instrument for large-scale blood separation, protein precipitation and cell separation and collection.

FEATURES

1. It adopts brushless high torque variable frequency motor, which is maintenance-free, free of dust pollution and fast lifting speed.

2. The flexible shaft drive system directly drives the rotor, which runs smoothly, with low vibration and low noise.

3. Imported fluorine-free compressor unit, double-cycle refrigeration, strong heat and cold exchange capacity, no environmental pollution, accurate temperature control.

4. Microcomputer processor is used to precisely control the speed, temperature and time, digital display, 10 kinds of program storage, and 10 kinds of lifting rate.

5. Door cover independent motor servo, reduce the labor intensity of the operator, overspeed, over temperature automatic protection, unbalance protection, the body is made of high quality steel structure, built-in steel explosion-proof protection inner sleeve, three layers of protection, safe and reliable, easy to use.

6. The rotor body is made of national aviation standard aluminum LC4, processed by forging treatment and A-level deep flaw detection, and passed static balance test and dynamic balance test to ensure the safety and reliability of the rotor body.

7. Three-stage damping, the centrifugal effect is optimal.

8. 18 bags of 400ml whole blood can be separated at one time, and can be equipped with a 2400ml centrifuge bottle, and 14400ml samples can be separated at a time.

SPECIFICATIONS

Model

FLR-7M

Max. Speed

7000rpm

Max. RCF

11900×g

Max. capacity

6× 2400ml

Timer

1~9h59min

RPM/RCF Transfer

YES

Noise (dB)

≤ 65

Temperature range

20~40

Lifting rate

10kind

Speed accuracy

±20r/min

Temperature accuracy

±1

Power (V/Hz)

AC 380V 50HZ 15A

Dimension (W x D x Hmm)

940×890×1000mm

Weight (Kg)

600KG

Certificates

CE,ISO & Calibration report are   available


Optional rotors:

NO.

Rotor type

Max.   speed (r/min)

Max. volume

Max. RCF (xg)

No30324

Angle   rotor

7000

6×1000ml

11900

No30399

Swing   rotor

4000

6×2400ml

5330
